Bluelight LED CIPP System
Coming Soon!

Pre-Order your Bluelight LED CIPP System!

The newly redesigned Bluelight LED CIPP lining system for laterals and small drain pipes is the most advanced light-curing system available. The innovative technology empowers CIPP lining pros by alleviating the time pressures of other CIPP systems.

Request a Quote Call to enquire Book a demo
Product Enquiry

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Finance Required

Δ
Product Demo

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Δ
On Sale
Out of Stock

Pole Adapter NPT to Quick Connect

Remo pole adapter. Connect 3/4″ threaded NPT to Quick Connect poles.

Original price was: $176.80.Current price is: $176.80.
Cherne Deflection Gauges
Deflection Gauges

Deflection Gauges (mandrels) are used to test flexible sewer pipe for out-ofroundness or deflection per ASTM specifications D3034 and F679. This testing ensures that flexible pipe has been properly bedded and backfilled (ASTM D2321) to give optimal performance.

Both steel and aluminum gauges utilize a nine arm design to ensure the pipe is tested accurately. This design also allows gravel and debris to easily pass through.

Other gauges can get hung up – causing a deflection test to fail, even though the pipe is within tolerance. Sized to .01″ , both deflection gauge styles meet ASTM requirements.

Aluminum Fin Style Deflection Gauge:
- Lightweight, corrosion-resistant
- Field-verifiable without a proving ring
- Assembles without tools
- All sizes fit through standard 24″ manhole
- Fins for 4″-15″ gauges have skid size equal to the nominal pipe size—gauge will meet regional codes and will not tip in the line
- Nine-fin design ensures testing accuracy
- Open design allows gravel and debris pass-through

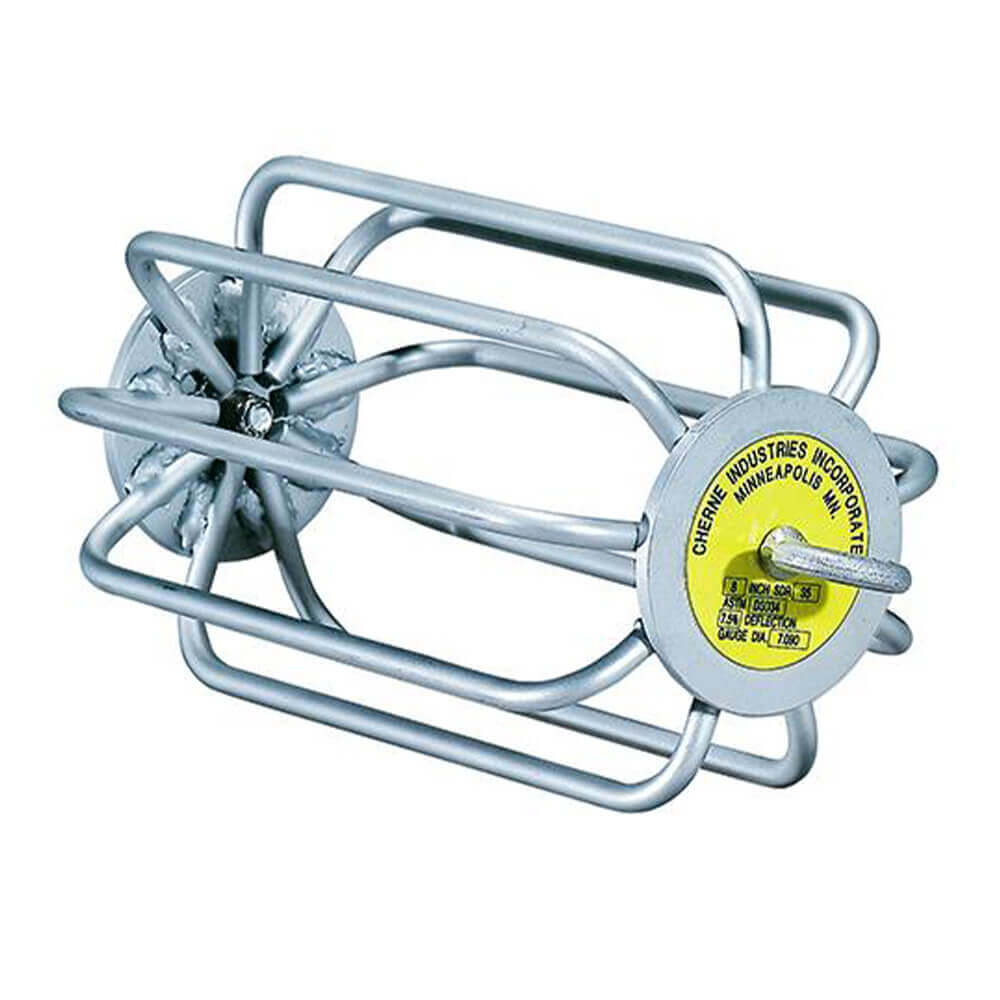

Fixed Steel Style Deflection Gauge:
- Durable, zinc-plated construction resists corrosion
- Conforms to mandrel sizing specifications—blade length is equal to or greater than the nominal pipe size
- Nine-arm design ensures testing accuracy
- Open design allows gravel and debris pass-through
Proving Ring:
- Used to verify deflection gauge sizes
- Standard sizes: 6″-15″ SDR 35 5% deflection and 8″-12″ SDR 35 7.5% deflection
- Custom sizes for 5″-18″ also available
Sizes available:

CUSTOM 5.19 – 6.49″, CUSTOM 6.50 – 8.29″, CUSTOM 8.30 – 9.99″, CUSTOM 10.00 – 12.55″, CUSTOM 12.56 – 15.33″, CUSTOM 15.34 – 18.99″, CUSTOM 19.00 – 20.99″, CUSTOM 21.00 – 23.00″

This product is a special order. Please contact us for price and availability.

Request a Quote Call to enquire
Product Enquiry

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Finance Required

Δ
Product Demo

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Δ
Cherne Air-Loc® Smoke Testing Products
Smoke Testing

Smoke testing sewer systems was introduced in the early 1960’s as a method of identifying areas where extraneous water was entering sanitary sewer systems. Today, smoke testing is known to be a proven method of effectively identifying inflow (storm/ground water entry into sanitary sewer), connected roof and basement drains, yard drains, illegal taps, and storm sewer cross connections.

Reducing inflow and infiltration saves costs from treating groundwater at wastewater treatment plants. The Environmental Protection Agency has instructed municipalities to eliminate inflow and infiltration into sewer systems. Smoke testing sewer systems is an effective way to accomplish this goal.

Smoke testing is accomplished by isolating a section of sewer line and introducing smoke into the line utilizing a smoke blower and smoke-generating device. (Important: Notify all local authorities and citizens before conducting smoke tests! Cherne provides guidelines for properly preparing and announcing to the community that a smoke test will be conducted.) Lines are first isolated using pipe plugs. Then smoke is introduced into the sewer system. The test crew then checks buildings, roof vents, the street, and other areas that potentially could be a source of extraneous water and records those locations for corrective follow-up.

Smoke Blowers

Cherne offers the broadest line of smoke testing equipment available today. Our smoke blowers are available for either traditional “smoke bombs” or liquid smoke fluid. Available with Honda or Briggs & Stratton engines, our units generate up to 3,769 cubic feet per minute of airflow to quickly introduce smoke into the sewer system. Cherne’s blowers are made of lightweight cast aluminium and feature a 1/2″ foam cell gasket to insure a leak-free seal on manholes and minimize vibration. The traditional smoke blower has a smoke bomb box holder, whereas the liquid smoke blower is supplied with a pressurized tank, hose and all components necessary to conduct the smoke test.

Smoke Generating Devices

Cherne Smoke Generating Devices (SGD), or “smoke bombs”, produce a thick, dense smoke that is highly effective for performing smoke tests. Smoke generating devices are timeproven, simple to use, and can be used by them selves or with most smoke blowers on the market today.

Smoke Fluid

Cherne’s Smoke Fluid also produces thick, dense smoke to effectively perform smoke tests. While Smoke Fluid requires some additional equipment to perform a smoke test, municipalities have found smoke fluid to be easy-to-regulate and has virtually an indefinite storage life.

This product is a special order. Please contact us for price and availability.

Request a Quote Call to enquire
Product Enquiry

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Finance Required

Δ
Product Demo

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Δ
Cherne Air-Loc® Line Acceptance Kit
Air-Loc® Low Pressure Air-Testing system has been successfully used for pipeline testing for over thirty-five years. This method of testing pipelines has proven to be the fastest, most economical and accurate method for testing pipe.

Air-Loc® Line Acceptance Kit. Used to perform a low-pressure air test from manhole to manhole. This is done by installing two Cherne Air-Loc plugs and using Cherne’s Air-Loc Panel to inflate the plugs and pressurise the pipeline. The test pressure is monitored for a predetermined amount of time for any decrease in pressure. If pressure drops less than 1 psi, the test passes. If a leak is detected, additional equipment is required to isolate the leak.

This product is available by special order. Please note that the pump is not included but can be purchased separately. For pricing and availability, please contact us.

Request a Quote Call to enquire
Product Enquiry

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Finance Required

Δ
Product Demo

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Δ
Cherne Air-Loc® Leak Location Kit
Air-Loc® Leak Location Kit. If the line acceptance test indicates a leak in the sewer line, it becomes necessary to locate the leak(s) so that proper repairs can be made.

A leak location (segment) test is accomplished by first stringing the sewer line using a Cherne Air-Loc Line Stringer or float line. Once strung, a winch cable is used to pull two Air-Loc Leak Locator plugs, which are attached together with an interconnect hose, through the pipeline in 22′ intervals. Air is introduced between the plugs at each 22′ increment until the test fails. Then, by moving the plugs back and forth, the leak can be isolated within two feet.

This product is a special order. Please contact us for price and availability.

Request a Quote Call to enquire Book a demo
Product Enquiry

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Finance Required

Δ
Product Demo

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Δ
Cherne Air-Loc® Fan Assemblies
The versatile Air-Loc® Fan Assembly can be used as a line stringer and smoke blower. Made from lightweight cast aluminium, this assembly includes a 5HP Honda or Briggs & Stratton engine and top mounted handles for easy manoeuvrability.

Air-Loc® Fan Assembly Features:
- For use as a line stringer andsmoke blower
- Made of lightweight, cast aluminum
- Foam base minimizes vibration
- 30″ Diameter base plate
Equipped with:
- Honda or Briggs & Stratton engine
- Top-mounted handles for easy maneuverability
Line Stringer Usage Details:
- Will string a 300′ section of sewer line in under a minute without plugging the line
- Line stringer vacuum pulls a lightweight nylonparachute through wet or dry lines
Available Engine Types:

FAN ASSEMBLY AIR-LOC (B&S ENGINE) L/STRI

FAN ASSEMBLY AIR-LOC (HONDA ENGINE)

This product is a special order. Please contact us for price and availability.

Request a Quote Call to enquire
Product Enquiry

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Finance Required

Δ
Product Demo

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Δ
Cherne Air-Loc® Manhole Testers
Air-Loc® Manhole Testers provide the most efficient, accurate, and cost effective method of testing new, existing, and rehabilitated manholes. Vacuum testing identifies infiltration and exfiltration problems.

This product is a special order. Please contact us for price and availability. Vacuum pump not included.

Request a Quote Call to enquire
First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Finance Required

Δ
Product Demo

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Δ
Cherne Air-Loc® Joint Testers
Fast, safe and easy to use, a five-second test determines joint integrity. Cherne’s Air-Loc® Joint Tester is designed to test large diameter, installed, pre-cast concrete pipe as described in ASTM C1103.

Ready to test with water or air straight from Cherne’s factory—no modifications are needed—the Air-Loc® Joint Tester also allows you to pre-test before backfilling. Capable of testing to 15 PSI air or 50 psi water.

Features:
- Lightweight aluminium design allows for easy assembly in manholes
- Independent, adjustable wheels—easy to move
- Quick-connect control panel is simple to install and remove, plus the top-mounting feature won’t interfere with laser usage
- Available with or without control panel and wheel kit
- Replacement end elements are available
- Recommended for testing pipe 21″ and larger
This product is a special order. Please contact us for price and availability.

Request a Quote Call to enquire
Product Enquiry

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Finance Required

Δ
Product Demo

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Δ
Cherne Air-Loc® Vacuum Equipment
Air-Loc® Vacuum Pump Features:
- Choose a Honda or Briggs & Stratton engine–each with low-oil shut-off to prevent engine failure
- Heavy-duty frame with optional wheel kit
- Unbreakable aluminum filter jars
- Oil-free graphite vane pump for no-fuss lubrication
- Draws 10″ Hg vacuum in about two minutes for a 15′ deep manhole (18 CFM at 10″ Hg)
Air-Loc® Vacuum Generator Features:
- Converts standard air compressor into a vacuum source for testing manholes–draws a vacuum in minutes
- Vacuum Generator 460 delivers 14 CFM at 10″ Hg
- Air compressor: minimum 7 CFM at 100 PSI
- Vacuum Generator 600 delivers 42 CFM at 10″ Hg, meeting or exceeding the competition
- Air compressor: minimum 85 CFM at 100 PSI
This product is a special order. Please contact us for price and availability.

Request a Quote Call to enquire
Product Enquiry

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Finance Required

Δ
Cherne Air-loc® Leak Locator Plugs
Air-Loc® leak locator plugs are designed for both low-pressure sewer line acceptance tests as well as leak location testing. Air-Loc® plugs can also be used to block flow by simply plugging the fill and readback ports.

Features:
- Eye bolts on both ends
- Easy-to-use quick-disconnect hose connections
- Rupture discs available
- Cross-biased cording on sizes 375-750mm, 600-1050mm, and 1000-1500mm
“Front” Air-Loc® Leak Locator Plugs also come equipped with:
- Color-coded inflation ports
- Removable air fittings
- Flexible internal hoses
- Field replaceable sleeves
Sizes:

AIR LOC LEAK LOCATOR PLUG 200-300MM, AIR LOC LEAK LOCATOR PLUG 300-450MM, AIR LOC LEAK LOCATOR PLUG 150-300MM

This product is a special order. Please contact us for price and availability.

Request a Quote Call to enquire
Product Enquiry

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Finance Required

Δ
Product Demo

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Δ
Cherne i2 Series Plugs
Cherne i2-Series plugs are designed to meet the size and expansion needs of Australian markets, offering enhanced safety and performance with a robust, optimised design.

Available in various sizes, these compact plugs are made from premium natural rubber with full body cording, ensuring reliable, high-quality performance even in constrained spaces.

Please contact us for price and availability.

Request a Quote Call to enquire
Product Enquiry

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Finance Required

Δ
Product Demo

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Δ
Out of Stock
Smoke Generating Devices
TEMPORARILY OUT OF STOCK

Cherne Smoke Generating Devices (SGD), or “smoke bombs”, produce a thick, dense smoke that is highly effective for performing smoke tests. Smoke generating devices are time proven, simple to use, and can be used by themselves or with most smoke blowers on the market today.

Features:
- Produces a thick, dense smoke
- Time-proven
- Simple to use
- Can be used with most smoke blowers
- 3 minute bombs available with a double wick that allows units to be strung together for a longer smoke time
Available in:

30 Second (115 cubic meters)

60 Second (225 cubic meters)

3 minute double wick

Sold Individually
$14.87 – $30.18
Cherne Air-Loc® Hydrostatic Test Pump
Hydrostatic Test Pumps are designed for pressure testing water lines and sewer force mains as prescribed by AWWA Standard C600 Installation of Ductile-Iron Water Mains and C605 Installation of PVC Pressure Pipe.

Aqua-Loc® Hydrostatic Test Pumps are designed to be the most user friendly in the industry. Both Diaphragm and Piston Style pumps are available and come powered by either a Honda or Briggs & Stratton engine.

Aqua-Loc® Hydrostatic Test Pump:
Diaphragm Style – Features:
- Honda or Briggs Engine with low oil shut off
- Hypro® Twin diaphragm pump – 9.5 gpm/550 PSI
- Handles up to 10% chlorine solutions
- May be run dry
- Test pressures can be set from 100-550 psi
- Integral manifolds – eliminates leak points
- Enclosed gear reduction – excellent heat dissipation
- Pulsation dampener – no need to surge tank
Equipped with:
- Heavy-duty frame
- Hydraulic quick-disconnect – brass, swivel fitting
- Inline strainer – easy to clean clear bowl
- Clear hose – flow verification
- Silicone filled test gauge w/stainless steel case
This product is a special order. Please contact us for price and availability.

Request a Quote Call to enquire
Product Enquiry

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Finance Required

Δ
Product Demo

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Δ
Out of Stock
EHLE Smoke Machine
‘Fog-smoker’ is a compact but powerful unit with integrated fan. This unit is especially suited for professional inspection of tubes, sewers, and tanks to locate leaks and wrong connections.

10 different air and fog volumes can be selected at the control panel (soft keyboard). The fog fluid creates a dense white fog, but no health hazard.
Technical data:
- Dimensions (L x W x H) : 560 x 295 x 350mm
- Weight (incl. 5 l fluid) : 21.5kg
- Max. power consumption : 2,400 Watt (230 or 110V)
- Fluid consumption : with max. output : 120 ml/min
- With permanent operation : 35 ml /min
- Air output: about – 3,000 lpms
Accessories Available:
- Plastic hose DN 50mm with “Storz C” coupling and guiding tube.
- 5 litres fogging fluid in a container
- Rugged transport case
Please contact us for price & availability.

Request a Quote Call to enquire
Product Enquiry

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Finance Required

Δ
Product Demo

First Name*

Last Name*

Business Name*

Email*

Phone Number*

State/Country*

Postal Code*

Type of Request*

Δ
EHLE Safety Data Sheet
$7,012.50
Smoke Fogger Fluid
Smoke/Fogger fluid that produce thick, dense smoke to effectively perform smoke tests.

Two types of smoke/fogger fluid Available
- 20L Petroleum based smoke fluid – Suits petrol smoke blower
- 25L Glycols and water based fogger fluid – Suits electric smoke blower
White Oil
$247.50 – $356.40

Pipeline Testing

Leave a Reply Cancel reply

Coming Soon!

Pre-Order your Bluelight LED CIPP System!

Product Enquiry

Product Demo

Out of Stock

This product is a special order. Please contact us for price and availability.

Product Enquiry

Product Demo

This product is a special order. Please contact us for price and availability.

Product Enquiry

Product Demo

This product is available by special order. Please note that the pump is not included but can be purchased separately. For pricing and availability, please contact us.

Product Enquiry

Product Demo

This product is a special order. Please contact us for price and availability.

Product Enquiry

Product Demo

This product is a special order. Please contact us for price and availability.

Product Enquiry

Product Demo

This product is a special order. Please contact us for price and availability. Vacuum pump not included.

Product Demo

This product is a special order. Please contact us for price and availability.

Product Enquiry

Product Demo

This product is a special order. Please contact us for price and availability.

Product Enquiry

This product is a special order. Please contact us for price and availability.

Product Enquiry

Product Demo

Please contact us for price and availability.

Product Enquiry

Product Demo

Out of Stock

Product Enquiry

Product Demo

Out of Stock

Product Enquiry

Product Demo

Signup to our Newsletter
