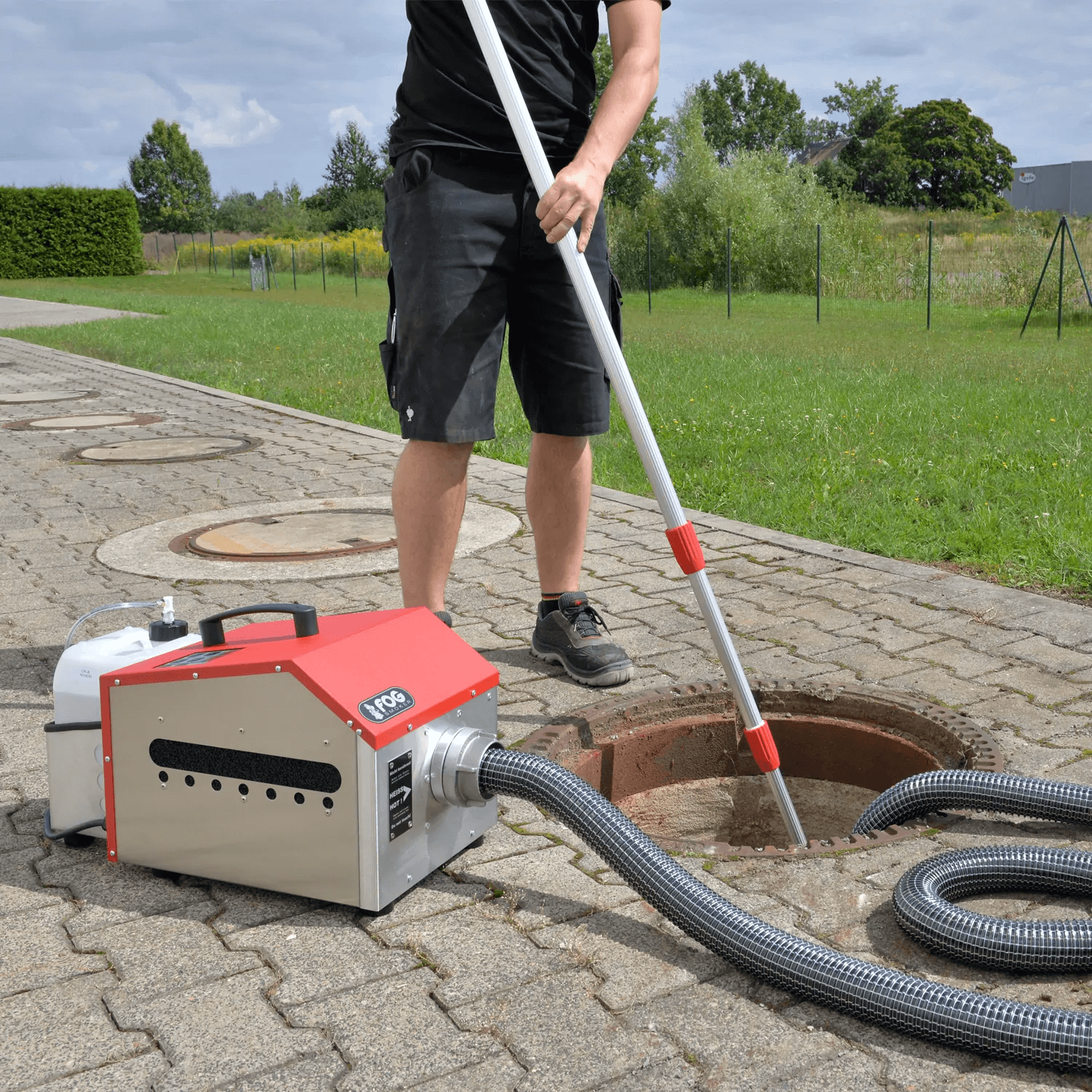

EHLE Smoke Machine

The EHLE Smoke Machine is a compact, high-output smoke testing unit designed for professional inspection of pipes, sewers, tanks and drainage systems.

Using dense white fog, the unit makes it easier to identify leaks, damaged sections, faulty seals and incorrect connections that may be difficult to locate through visual inspection alone. An integrated fan delivers the fog through the system, allowing operators to quickly trace where smoke escapes and pinpoint potential problem areas.

The control panel offers 10 selectable air and fog output levels, giving operators greater control across different pipe sizes, system layouts and testing conditions. Despite its compact size, the unit delivers strong airflow for demanding professional applications.
The fogging fluid produces a dense, highly visible white fog and is designed for safe use during inspection work.

Ideal for plumbers, drainage contractors, sewer maintenance teams and pipeline inspection professionals carrying out leak detection, connection testing and fault finding.

Technical specifications:

• Dimensions: 560 x 295 x 350mm
• Weight including 5L fluid: 21.5kg
• Maximum power consumption: 2,400W
• Power supply: 230V or 110V
• Fluid consumption at maximum output: 120ml/min
• Fluid consumption during continuous operation: 35ml/min
• Air output: approximately 3,000 litres per minute

Optional accessories include:

• DN50 plastic hose with Storz C coupling and guiding tube
• 5L fogging fluid container
• Rugged transport case

Please contact us for price & availability.
