US Jetting 4018
INDUSTRY LEADER

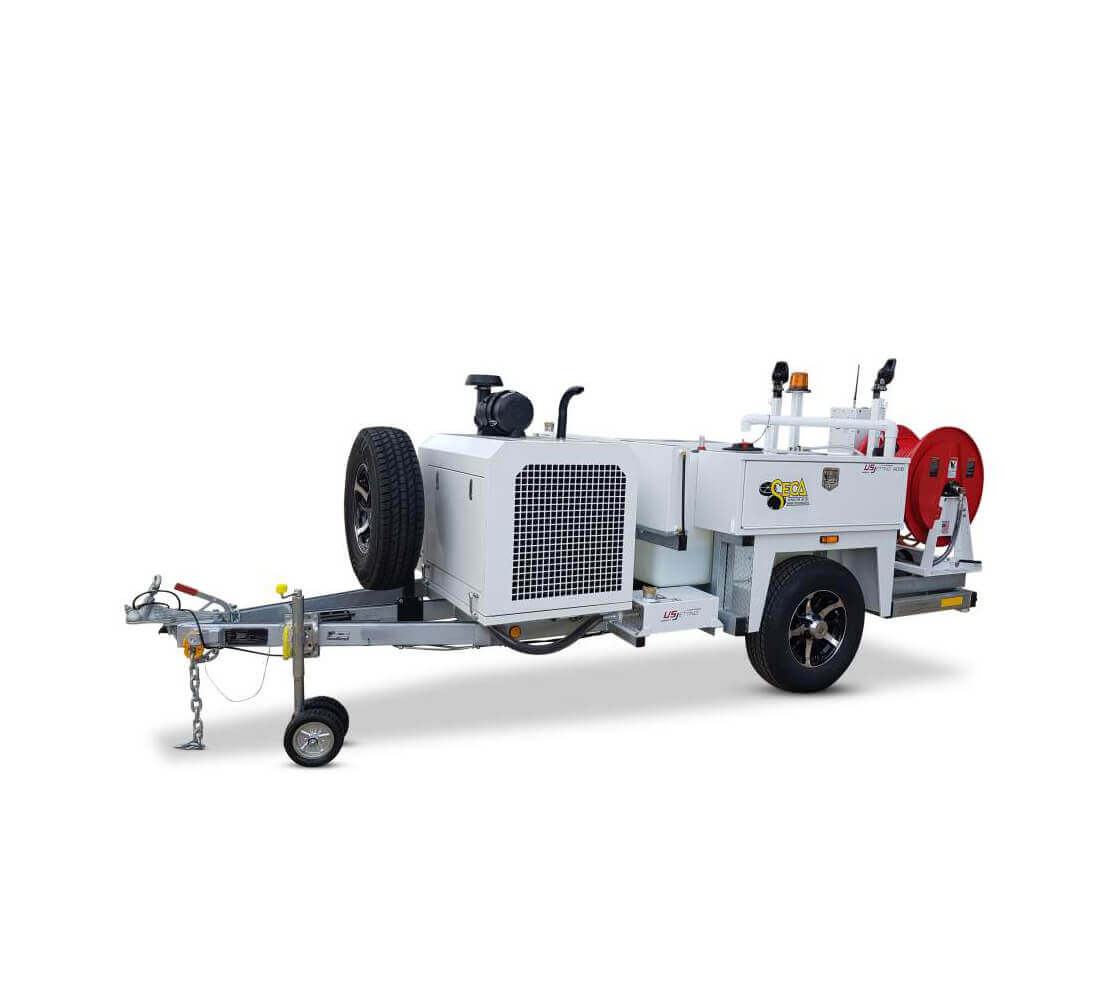

68lpm @ 275 Bar (4000psi) – The US Jetting 300 Gallon Platform Series of High-Pressure Jetting units is a modular component concept of heavy-duty single axle trailers for the mounting of selected US Jetting PumpSets.
This unique concept allows the customer to participate in the design and selection of US Jetting units to match their specific performance and job requirements. The central design feature is a single 1135 litre water storage tank with additional structural capacity for the inclusion of a selected US Jetting Pump Set and hose reel systems.
The frame is constructed of welded tubular steel with a powder-coated baked-on finish for years of durability. A single 7,000 pound rated Torque-Flex axle with LT245/R75-16 tires with an electric brake system ensures towing ease behind a service van or pick-up truck.
FEATURES AND BENEFITS
- Non-corrosive polyethylene tank.
- Pump has RUN DRY CAPABILITY.
- Capable of pumping fresh, salt and brackish water.
- Hydraulic Pullout Swivel hose reel with multi-positional locking.
- Reel mounted controls for ease of operation at any reel position.
- Hydraulically operated reel with fully adjustable speed control.
- Superior cleaning nozzles with replaceable ceramic inserts.
- Large toolbox and rear-mounted storage area.
GENERAL SPECIFICATIONS
| ENGINE | Hatz Silent Pack Diesel Engine | HOSE REEL | Hydraulic hose reel with 150m of 1/2 in /12.5mm sewer cleaning hose. |
| PUMP | Variable Run dry capability (4000 psi) | PULSATION SYSTEM | Automatic induced pulsation in hose allows the hose to travel long distances and negotiate multiple bends. |
| WATER TANK | 1,135 Litre non-corrosive polyethylene tank, kerbside overhead fill. | CONTROLS & GAUGES | Throttle, Tacho/hour meter, water pressure gauge, fuel gauge, water control valve. |
| FUEL TANK | 70 litres | STANDARD EQUIPMENT | Bulldog Nozzle Bomb Nozzle Penetrator Nozzle Top Manhole Roller Tiger Tall |
| COLOUR | White as standard, other colours available. | OPTIONS | Sideline Kit & Nozzle WIRELESS REMOTE CONTROL 2270L Tank Skid Mounted Truck Mounted |
