Sewer Robotics

ONE MULTIFUNCTIONAL CRAWLER WITH VARIOUS JOB-SPECIFIC MODULES FOR MULTIPLE APPLICATIONS

This adaptable mobile economic system seamlessly integrates with a range of SEWER ROBOTICS CRAWLERS and dedicated modules, enabling tasks such as UHP water jet cutting, lateral reinstatement, and CCTV inspection within pipelines ranging from 150mm to 1000mm.

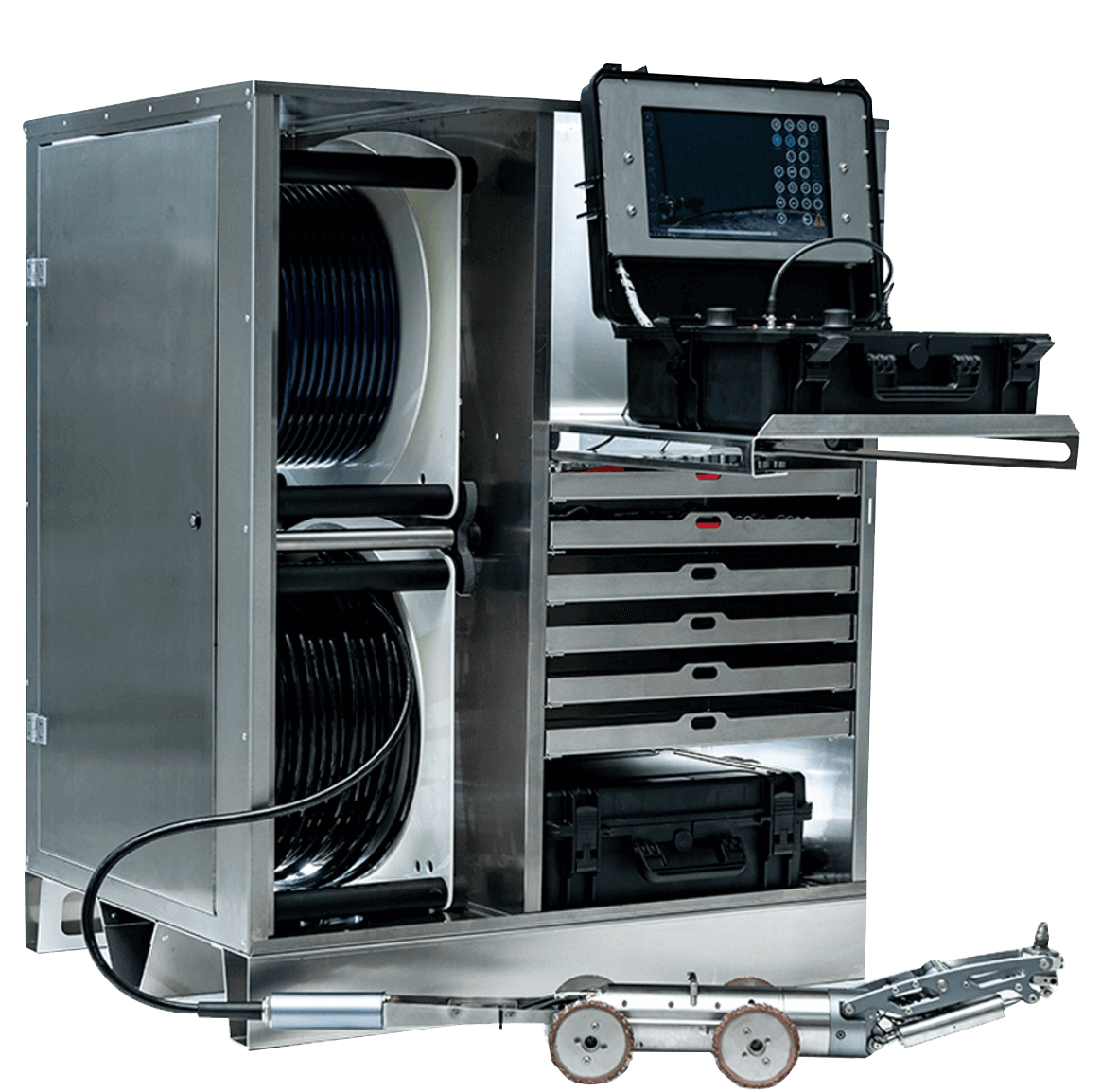

MULTI-FUNCTIONAL CRAWLER

Effortlessly swap between job-specific equipment modules in just 60 seconds to facilitate underground pipe inspection, cleaning, cutting, and rehabilitation tasks.
Available in various configurations from:

• • 150 – 600
  • 200 – 750
  • 250 – 1000



Compatible Modules Available for Each Multi-Functional Crawler:



UHP PRECISION WATER JET CUTTING

Precision water jet cutting applies a continuous adjustable high pressure/ low volume water blast from a special designed crawler, with precisely steerable nozzle and CCTV camera module, for controlled removal of deposits settled and solid obstructions from within 150 -1000mm (6- 40”) pipes and their lateral connections.

Eyes on the job and continuous adjustment of water pressure, angle with the pipe and distance to the material enable the operator to achieve the breakdown and elimination of various obstructions without adding damage to the pipe structure.

• Versatile – convert into a reinstatement cutter in just 60 seconds
• Power & precision – to remove FOG, roots, cement, calcium & concrete
• Wide scope of use – from 150 – 600mm (6-24”)
• Easy serviceable – with personal assistance and clever maintenance kits
• Reliable – build tough, from durable materials



GRINDING, MILLING AND CUTTING

Sewer Robotics reinstatement cutters feature precise movements and can be used with water driven cutter motors for extremely powerful and fast reinstatement or cutting intruding taps of any material. Designed durable and user-friendly, with maximum clearance and a wide scope of applications, easy to service, and easy deployment from tight manholes.

• • • • Versatile – to target the ‘special’ well-paid jobs
      • Power & precision – get a quality job done fast
      • Wide scope of use – from 150 – 500mm (6-20”)
      • Easy serviceable – clever maintenance kits
      • Reliable – build tough, from durable materials





GRIPPER

The gripper accessory is compatible with all water driven lateral reinstatement and water jet cutting job specific modules.

It has 3 replaceable ‘fingers’ that can be closed to grab and remove solid debris and other undesired objects from pipelines.

The closing force of the gripper’s fingers is controlled by adjusting the pressure of the high-pressure
power pack.

• Heavy duty materials
• Adjustable ‘fingers’ for different sizes and closing angles
• Adjustable closing force via pressure




CCTV INSPECTION AND SPOT REPAIR

• Compatible with the same robot that is used for grinding and water jetting
• Automatic web synchronisation
• Auto-horizon adjustment
• Single button joint inspection
• Air coupling for spot repair packers
• Camera compatible with push cable for inspection of 4” (100mm) pipeline
