Quick-Lock

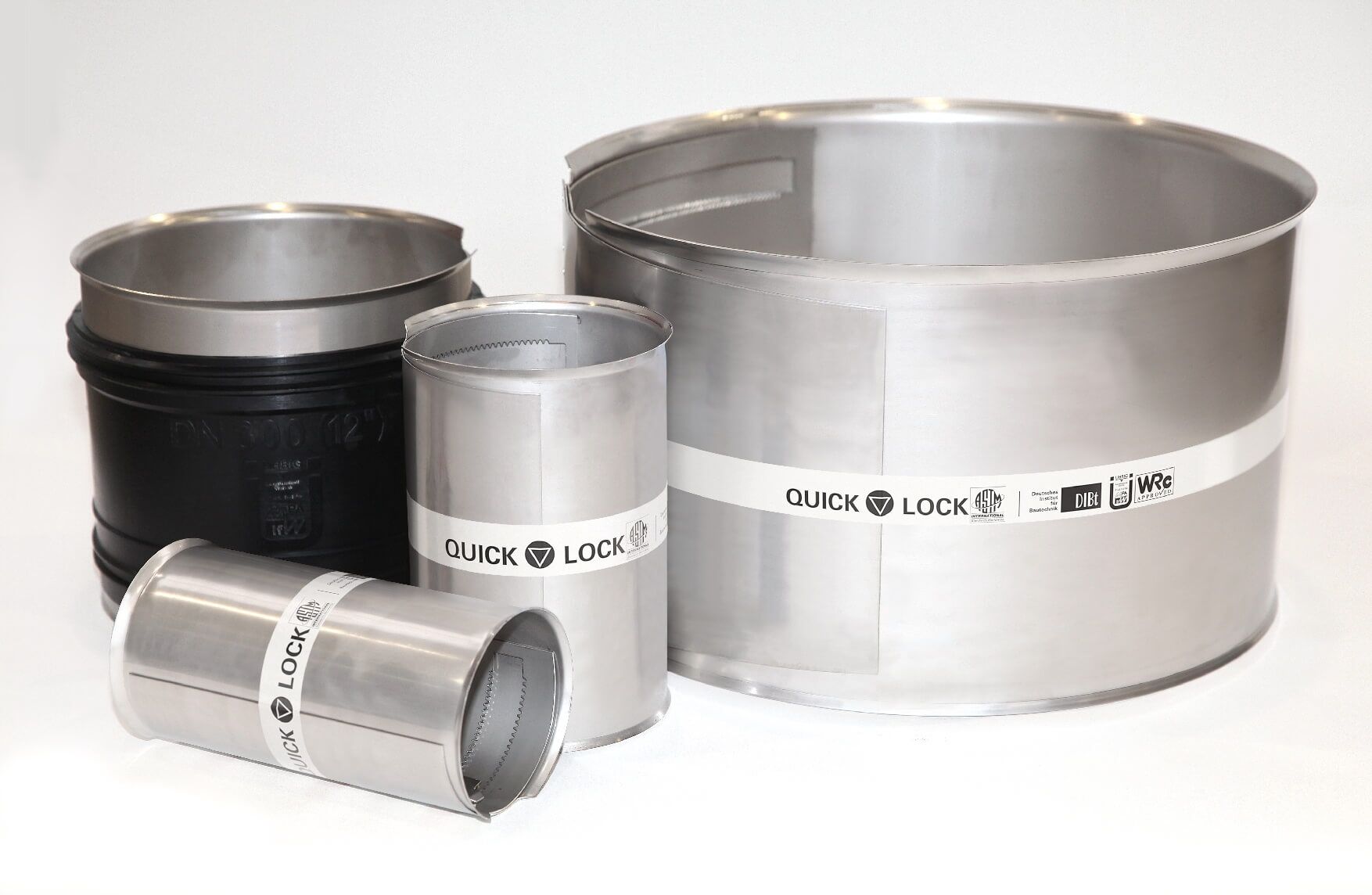

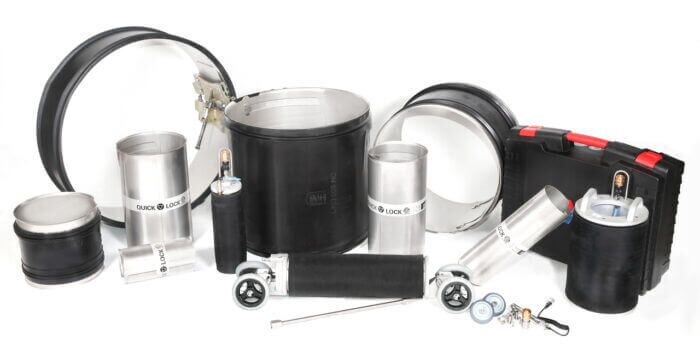

Positioned usually by a crawler and expanded pneumatically, Quick-Lock’s rehab sleeve provides structural, trenchless pipe repair with heavy-gauge 316 stainless steel, plus infiltration abatement with an EPDM rubber gasket.
Quick-Lock is the solution for:
- Infiltration.
- Longitudinal cracks.
- Circumferential cracks.
- Holes.
- Separated joints.
- Offset joints.
- Abandoned laterals.
- Root intrusion.

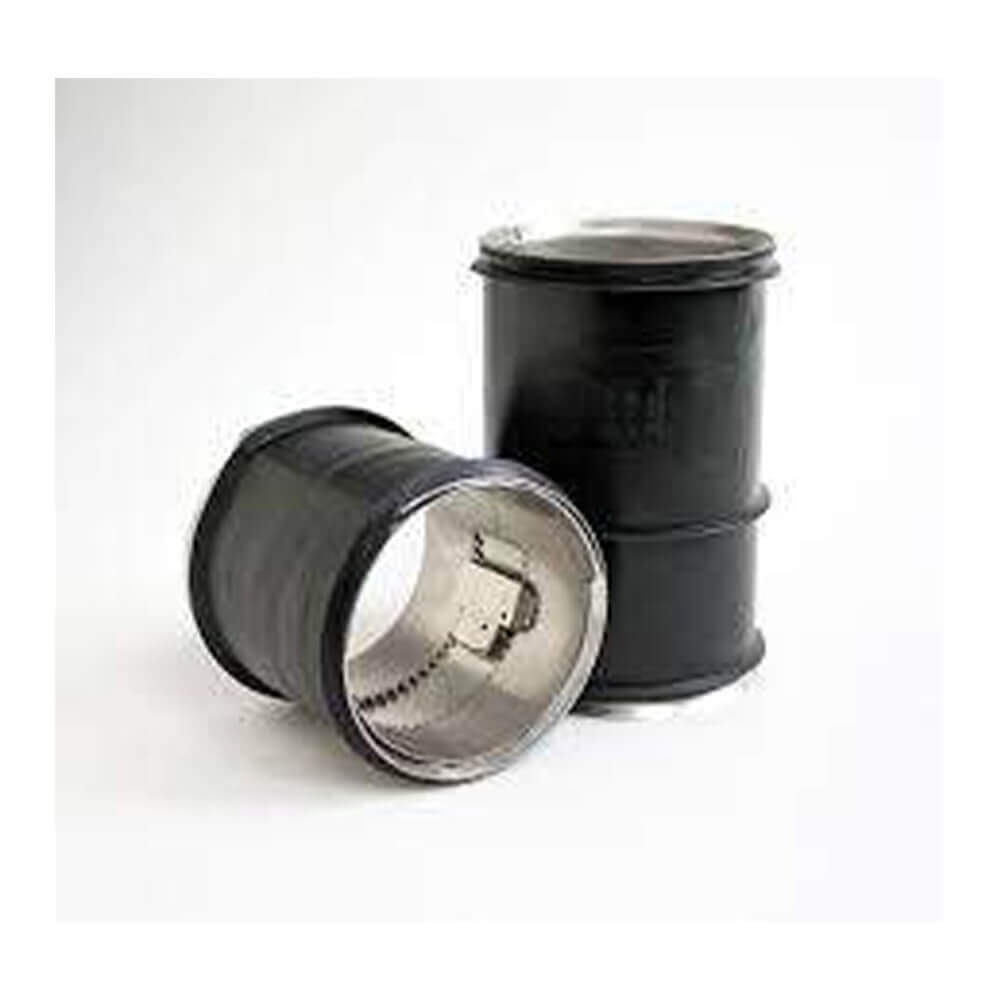

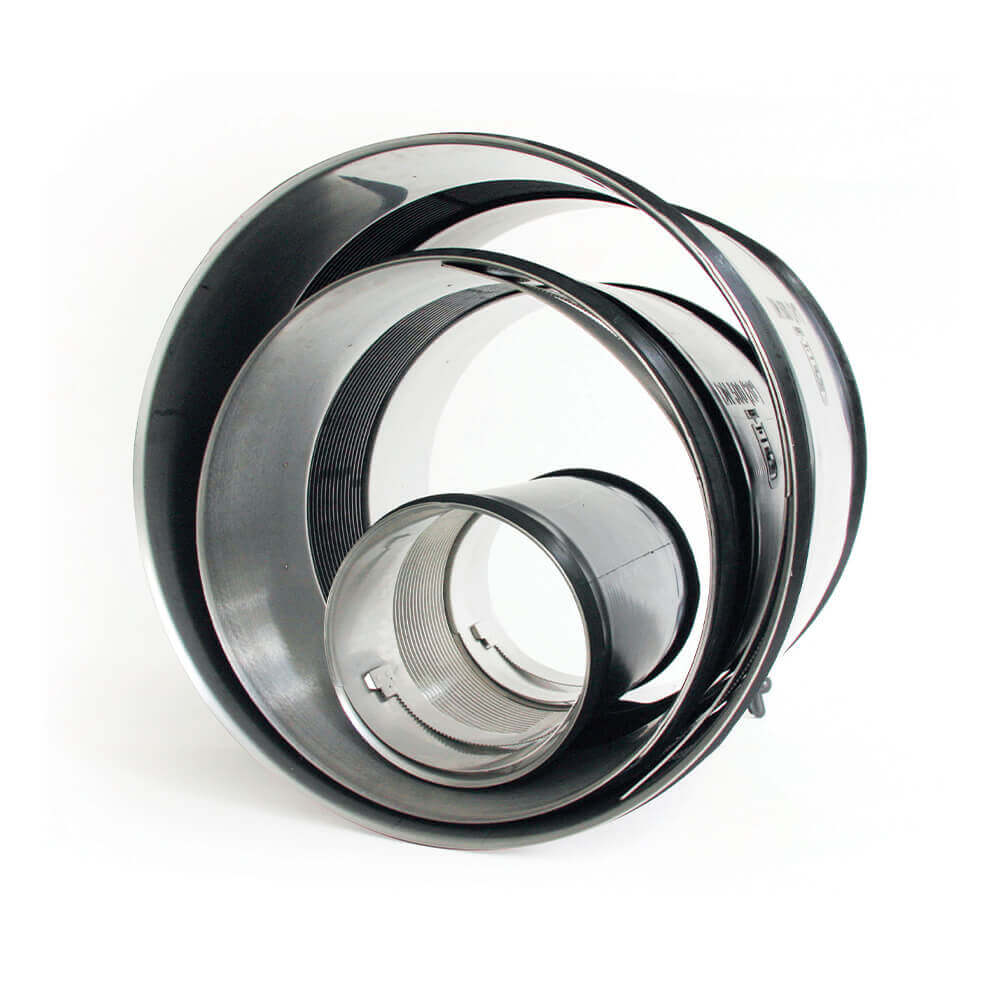

- Quick-Lock sleeves in the smaller range are available in diameters ranging DN100–DN825, and in lengths of 400mm, and 500mm.
- DN825-DN1800 pipes are also catered for under confined space entry with the Quick-Lock Big seal.

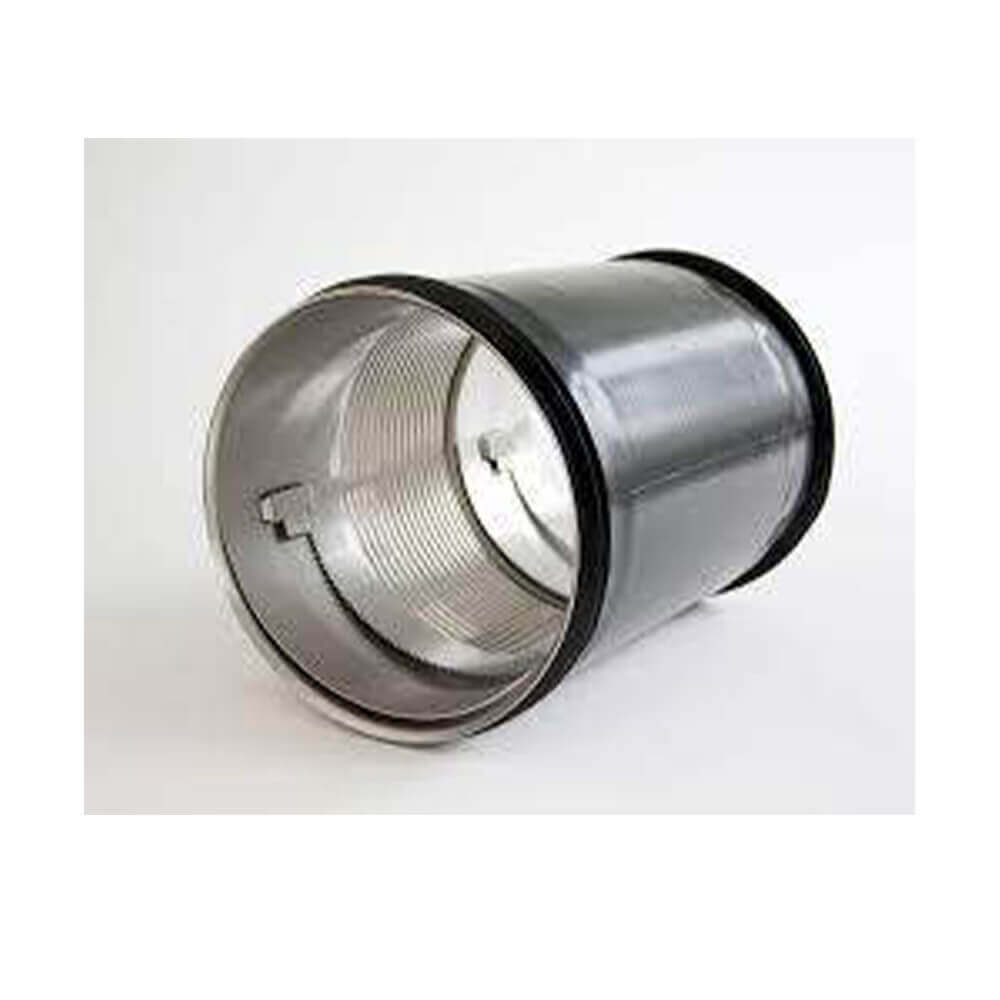

- Multiple sleeves can be interleaved to perform longer repairs (JDL’s) and for radial displacements (JDR’s) choose the new Quick-Lock Flex seal.
HOW IT WORKS
- The Quick-Lock system seals and stabilizes damage completely by mechanical means, without any chemicals and is suitable for all pipe materials.
- The patented locking system ensures that the sleeve stays permanently in position.
- After rehabilitation, the sleeve has its own static capability and absorbs the natural tectonic movements of the pipes.
- For repairs in longer damages the Quick-Lock sleeves can be consecutively installed in series.
REQUIREMENTS

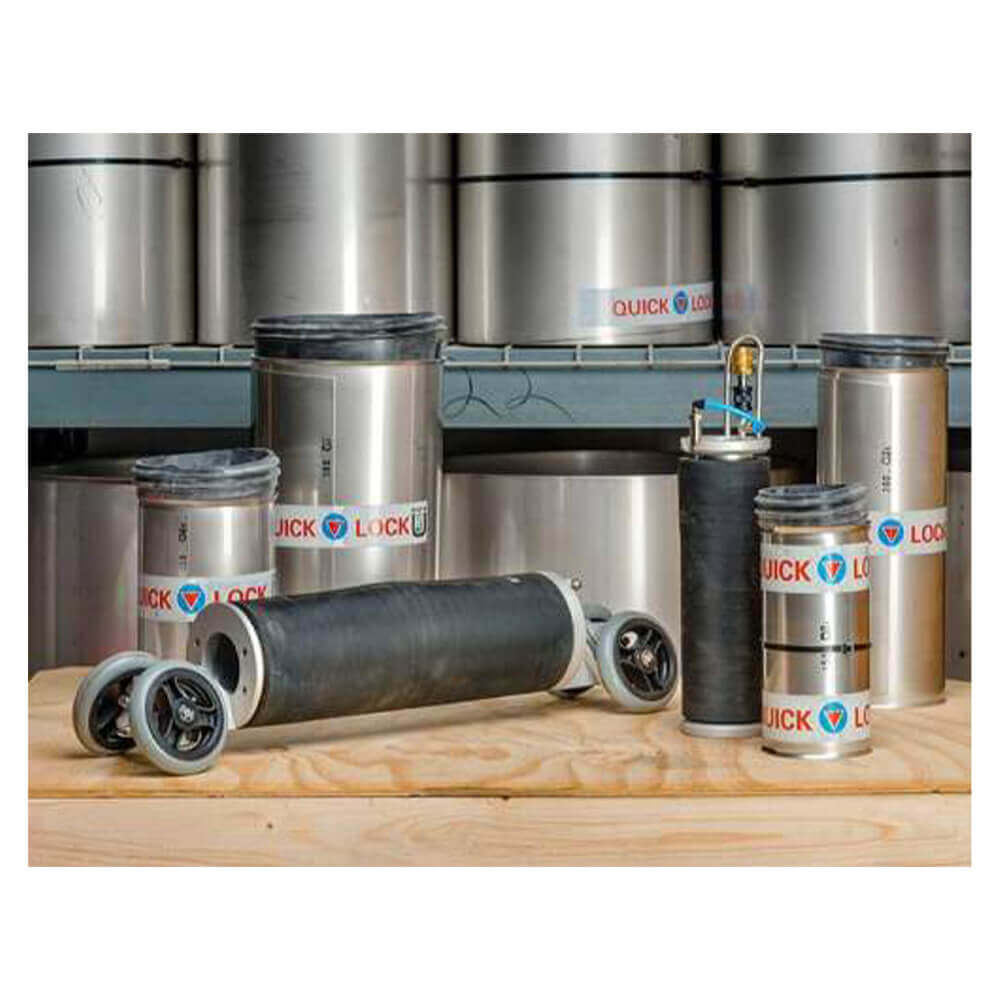

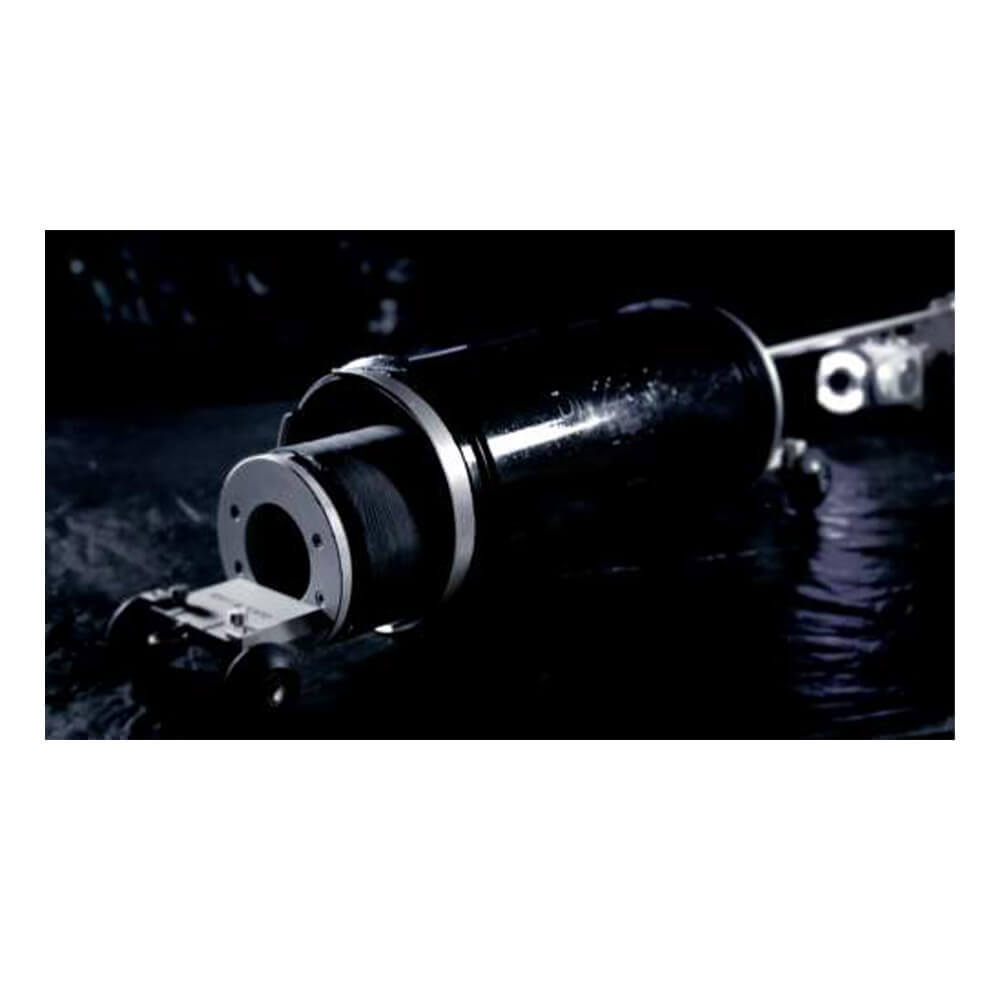

The Quick-Lock sleeve is expanded with a compressor and the Quick-Lock packer for each CCTV crawler camera or robot system.
SYSTEM ADVANTAGES
- Simple installation
- 316 stainless steel and EPDM long-life materials
- No chemicals
- Approved according to building legislation
- With statics for old sewer pipes condition type II
- Resistance to high pressure rinsing according to DIN 19 523
- Low investment in system technology
Point Repair: For standalone permanent point repair, or for pre-lining stabilisation works including high groundwater infiltration. Quick-Lock sleeves restore a pipe’s structural integrity and seal out groundwater. They are carefully designed to minimize diameter loss and outlast any other rehab.

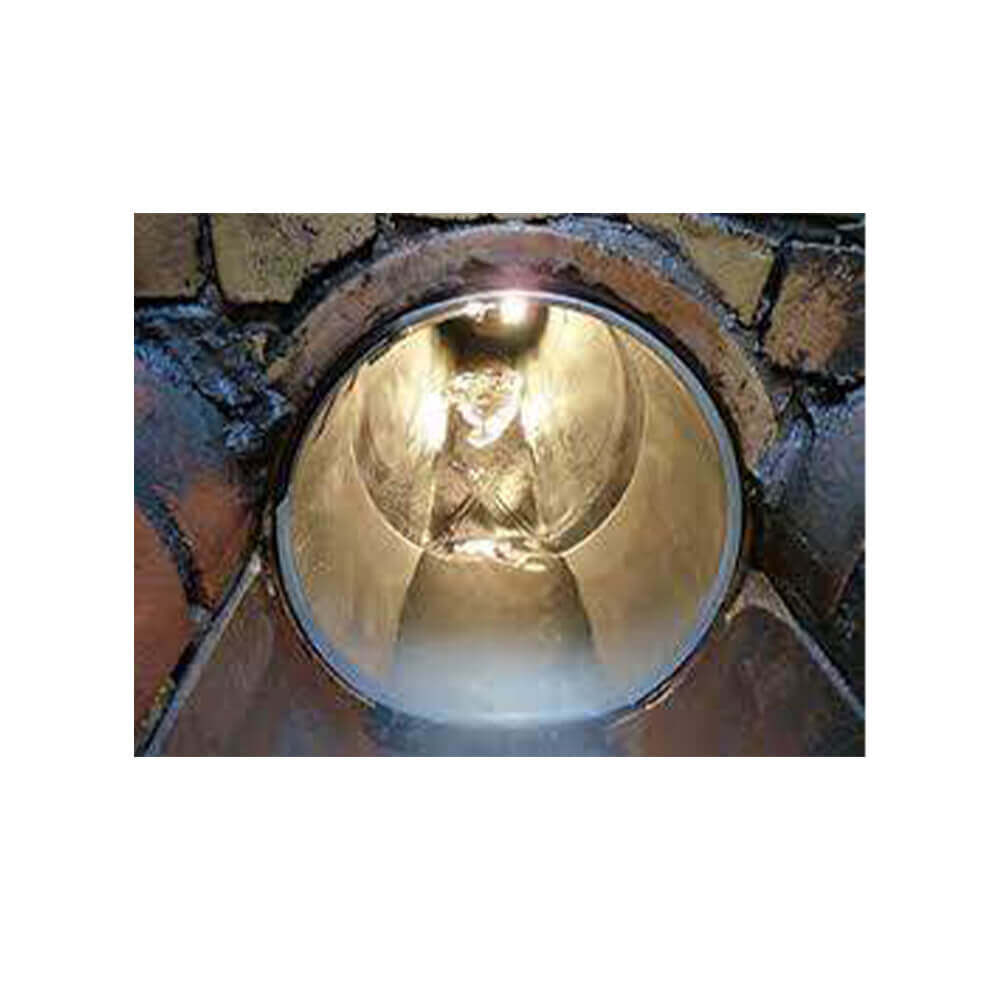

Liner End Seal: Quick-Lock end caps strengthen a CIPP liner at its most vulnerable points—the ends. This mechanical solution prevents liner and host pipe infiltration or exfiltration for the lifetime of a close fit liner. It is particularly most effective on EX, spiral, and U.V cured liners. Stronger and easier to install than other end caps, they’re a must-have insurance policy for a long-term watertight lining project.
It installs in minutes with minimal manpower and overhead. Quick-Lock is chemically resistant against sewage, thinned acids, lye, and aromatic and chlorinated hydrocarbons.
