Manhole Safety Grates
$1,914.00 – $2,315.50
It is widely known in the industry that opening a manhole is a high risk and fatal activity that requires operators to erect approved safety equipment. It is impractical and inefficient to erect and remove, in typical situations, safety barricades each time a manhole is needed to be inspected or maintenance to be carried out.
It is widely known in the industry that opening a manhole is a high risk and fatal activity that requires operators to erect approved safety equipment. It is impractical and inefficient to erect and remove, in typical situations, safety barricades each time a manhole is needed to be inspected or maintenance to be carried out.
Benefits of Safety Grates:
- Provides easy access for services or equipment with a hinged service hole
- Eliminates falls from heights where work is conducted near or over sewer openings
- Allows work to be conducted harness-free both at and below ground level
- Is easily installed and removed while workers are in confined spaces
- Stops large objects falling into confined spaces
- Enables people to move freely while cables are in use due to its unique cut-out slot design
- Is self-ventilating allowing for natural airflow and / or smoke testing
Product Information:
- High quality, lightweight material
- Special black non-slip powder coated finish giving clear vision through vented slots while carrying out works below
- A UV resistant nylon roller to accommodate jet rod hoses and camera cables
- Self-ventilating allowing for natural air flow and/or smoke testing
- 316 stainless hinges and hardware
- Engineered and manufactured to Australian Standards
- Load rated to SWL 150kg

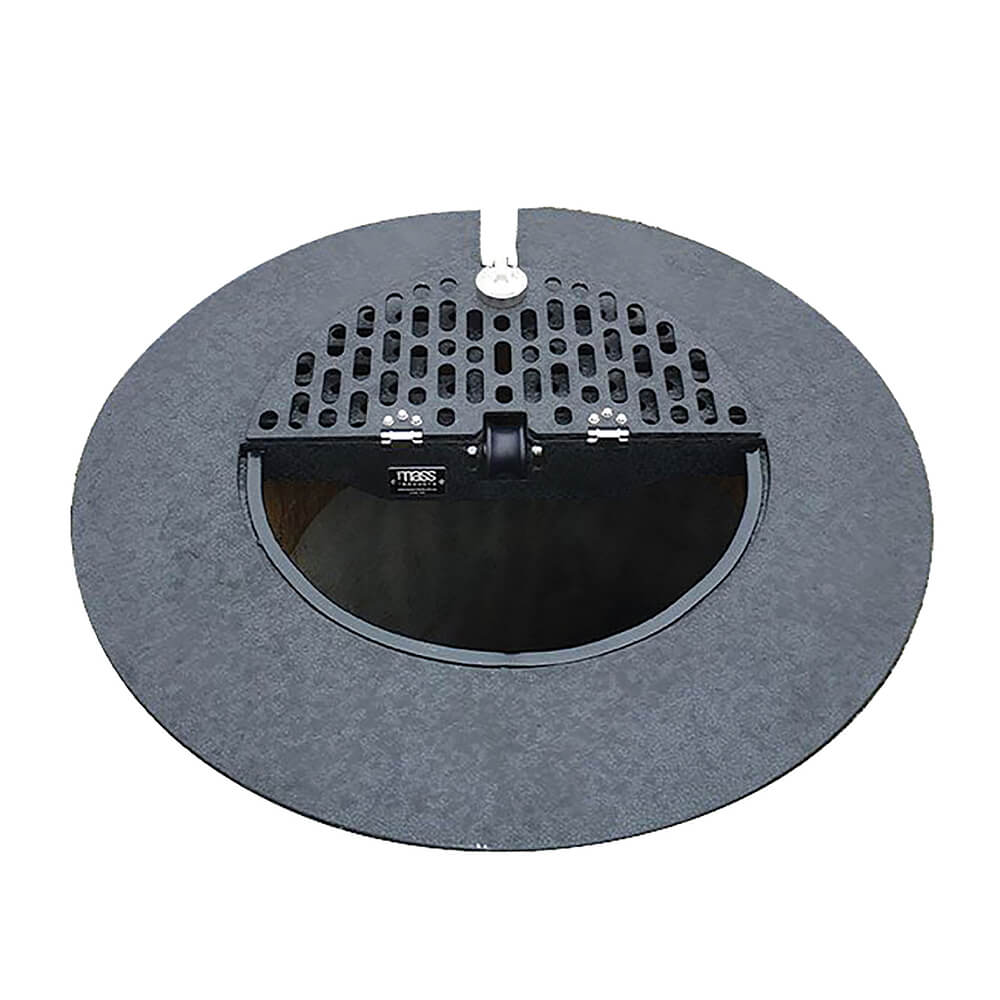

Available in Standard Circular or Folding Circular Grates
Size: 550mm – 650mm
Standard Circular Safety Grate Weight: 10.6kg
Folding Circular Safety Grate Weight: 12.4kg
Gallery
| Manhole Safety Grates | CIRCULAR MANHOLE GRATE – STD (45), CIRCULAR MANHOLE GRATE – FOLDING (45), CIRCULAR MANHOLE GRATE – FOLDING (75), RECTANGULAR GRATE- SUITS P6 PIT |
|---|
