iPEK • Modular HD Crawler System

Camera Inspection / Crawler System

iPEK Rovion

Full HD CCTV Pipe Inspection System

See pipe condition in high definition. Configure a professional sewer inspection system around your pipe sizes, inspection distances and reporting needs. Supplied and supported in Australia by SECA.

Build your Rovion configuration

Pricing depends on the crawler, camera, reel, controller and accessories selected.

Already using iPEK Rovion? Request product support

DN100–DN2000

Across suitable configurations*

Up to 500m

Depending on cable reel

Full HD 1080p

High definition cameras

Portable or Vehicle

Control options for your crew

*Coverage depends on crawler, camera, wheel sets, elevators and accessories. One setup does not cover every pipe size.

Overview

Crawlers

Cameras

Controllers & Reels

Accessories

Reporting

Specifications

BUILT AROUND YOUR INSPECTIONS

One platform. A setup for your work.

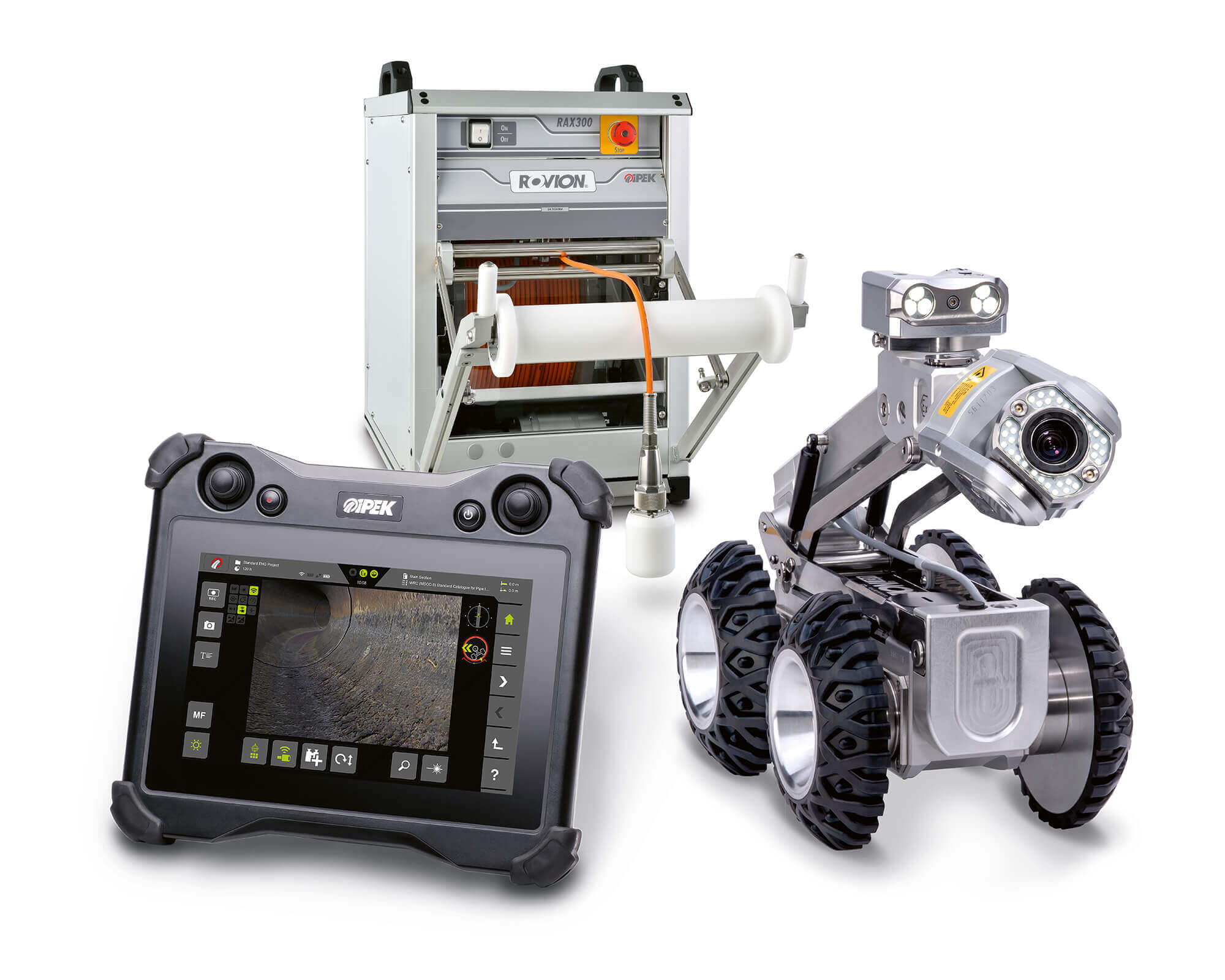

The iPEK Rovion HD CCTV inspection system combines a crawler, camera, cable reel and control unit for inspecting sewer and drainage pipelines. Its modular design lets you select equipment for your current work and plan future additions with SECA.

01

Match your pipe sizes

Select the crawler, wheel sets and camera position for the diameter and conditions you need to inspect.

02

See the details in HD

Choose an appropriate HD camera, with pan, tilt and zoom options for examining pipe walls, joints and connections.

03

Plan your reporting workflow

Discuss optional inspection coding and WinCan software with SECA so your equipment fits the reports your clients require.

Product Video

See Rovion HD in action.

Watch a product demonstration to see the crawler systems, camera controls and inspection workflow.

Explore your crawler options

Choose the crawler for your pipe network.

Pipe diameter is the starting point. Access, wheel selection, camera centring and site conditions also influence the final configuration.

Rx95

DN100–DN200

A compact crawler for smaller mainlines. Ask SECA to confirm the compatible HD camera and wheel sets for your pipe range.

RX130 HD / RX130L HD

Medium pipe inspection

RX130 starts at DN150, with coverage to DN1000 using suitable options. RX130L offers an integrated lift. Select the elevator, carrier and wheel sets for your operating range.

RX400 HD

DN400–DN1300

A crawler for larger pipelines, with an integrated elevator and additional lighting. Suitable extensions can increase coverage to DN2000.

*Ranges are configuration guidance. SECA will confirm compatibility and the supplied operating range before quoting.

High definition inspection

Full HD cameras – 1080p.

Inspect pipes in Full HD 1080p (1920 × 1080). Select the camera type for the detail you need to capture: a forward view, close inspection of joints and connections, or a specialist inspection workflow. SECA specifies the compatible HD camera, crawler and control combination.

PAN, TILT & ZOOM

RCX100 HD

Pan, tilt and zoom for detailed pipe inspection. Includes 10× optical zoom, regulated LED lighting and integrated laser pointers.

PAN & TILT

PTC50 HD

Direct the view towards pipe walls, joints and lateral connections. The brochure illustrates this camera family; ask SECA to specify the appropriate HD option for your setup.

PAN, TILT & ZOOM

RCX90 HD

Inspect a connection or defect more closely with a zoom camera. Confirm the current HD model and compatibility when configuring your Rovion system.

Complete the inspection system

Select your control and cable reel.

VC500 HD mobile control

A portable control option for crews working across sites. Confirm the included software, storage and compatibility with other iPEK equipment as part of your quote.

DCX5000 HD vehicle control

A control option for a dedicated CCTV inspection vehicle. Discuss the operator station and vehicle installation requirements with SECA.

Manual and automatic reels

RMX200: up to 200 m, manual. RAX300: up to 300 m, automatic. RAX500: up to 500 m, automatic. Choose capacity and cable handling for the work ahead.

Configure your inspection equipment

Rovion accessories for more inspection applications.

Add lighting, camera positioning and specialist inspection accessories to suit your pipe network. Accessories are optional and selected to match your quoted HD system.

RAL130 auxiliary light

Additional forward-facing illumination for inspecting larger pipes.

RAL200 light & reversing camera

Additional forward-facing lighting with a built-in colour reversing camera.

RAL1000 large-pipe lighting

Additional illumination to help examine sidewalls and defects in large pipelines.

RED200 camera elevator

Raises the camera position for improved centring. Specify the compatible HD elevator for the selected crawler.

RCR1000 carrier

A wide-stance carrier for an RX130 configuration, improving clearance and camera positioning in larger pipes.

FLOAT inspection equipment

A floating inspection arrangement for suitable RX130 setups, with front and rear tethers.

RCC90 shaft inspection

A shaft inspection accessory with focused lighting and additional mounts for suitable camera configurations.

LSS laser scanner

Optional pipe profiling to measure diameter and deformation, using a compatible camera adapter and the appropriate WinCan module.

Images illustrate accessory families. SECA confirms current HD versions, mounting requirements and compatibility with your crawler, camera and controls.

From inspection to reporting

Plan your WinCan reporting options.

For inspections requiring asset records and defect coding, SECA can discuss optional embedded inspection software and suitable WSA or NZPIM catalogues. Specify the catalogue and reporting requirements with your enquiry.

With the appropriate software installed, inspections created on the VC500 can be transferred to WinCan for office review and reporting. Desktop WinCan licences are additional; they are not automatically included with every Rovion system.

Depending on the selected licences and workflow, reporting options can include photos, video, project editing, GIS-assisted preparation and sharing inspection data with clients.

Technical detail

Rovion HD specifications and configuration notes.

Feature Specification
Image resolution Full HD 1920 × 1080
Zoom 10× optical and 16× digital
Rotation Continuous 360° rotation
Lighting Advanced LED illumination
Measurement aids Integrated laser pointers
Sensor feedback Angle sensors, pressure monitoring and Time-of-Flight sensors
Protection rating IP68
Published inspection range DN150–DN2000, depending on system configuration

The RCX100 HD is a Full HD pan, tilt and zoom camera for detailed pipeline inspection.

Feature Specification
Image resolution Full HD 1920 × 1080
Zoom 10× optical and 16× digital
Rotation Continuous 360° rotation
Lighting Advanced LED illumination
Measurement aids Integrated laser pointers
Sensor feedback Angle sensors, pressure monitoring and Time-of-Flight sensors
Protection rating IP68
Published inspection range DN150–DN2000, depending on system configuration

*SECA will confirm camera compatibility and the operating range for your selected crawler, wheel sets and accessories.

Configure your Rovion system with optional equipment to suit your inspection requirements:

  • Wheel sets, elevators and carriers — adapt the crawler setup and camera position for different pipe diameters.
  • Auxiliary lighting — provide additional illumination for larger pipelines, with reversing-camera options available.
  • Specialist inspection accessories — discuss floating equipment, shaft inspection accessories and laser profiling for suitable configurations.
  • Inspection coding and reporting software — discuss WSA or NZPIM coding options and the WinCan licences needed for your reporting workflow. WinCan licences are sold separately unless included in your quoted package.

*Optional equipment is selected to suit your quoted system. SECA will confirm compatibility, mounting requirements and software licences before supply.

Your quote should cover

  • Crawler and wheel sets
  • Compatible HD camera
  • Cable reel and reach
  • Control unit and installation
  • Accessories and lighting
  • Reporting software and licences

Common Questions

Rovion CCTV inspection system FAQs.

The Rovion platform can inspect pipes from DN100 to DN2000 using suitable combinations of crawlers, cameras, wheel sets and accessories. Each configuration has its own operating range. Tell SECA the pipe sizes and conditions you work with so the team can recommend a suitable setup.

Contact SECA to check compatibility with your existing system. Provide the model and serial numbers of your crawler, cable reel and control unit so the team can assess the equipment and confirm any changes needed.

WinCan licences are sold separately unless included in your quoted package. Discuss your requirements for on-site defect coding, office reporting and sharing inspection results with SECA so the appropriate software and licences can be included.

Yes. Rovion can be configured for a dedicated CCTV inspection vehicle, with the DCX5000 control unit supporting vehicle installations. SECA can discuss a fit-out suited to your equipment and operational requirements.

Select Get Pricing or contact SECA to request a tailored quote. Include your typical pipe diameters, required inspection distance, preferred portable or vehicle-mounted arrangement, and reporting requirements. If you are upgrading an existing system, include its equipment details.

Ready to plan your Rovion HD system?

Tell us about your inspections. We’ll help match the equipment to the job.
