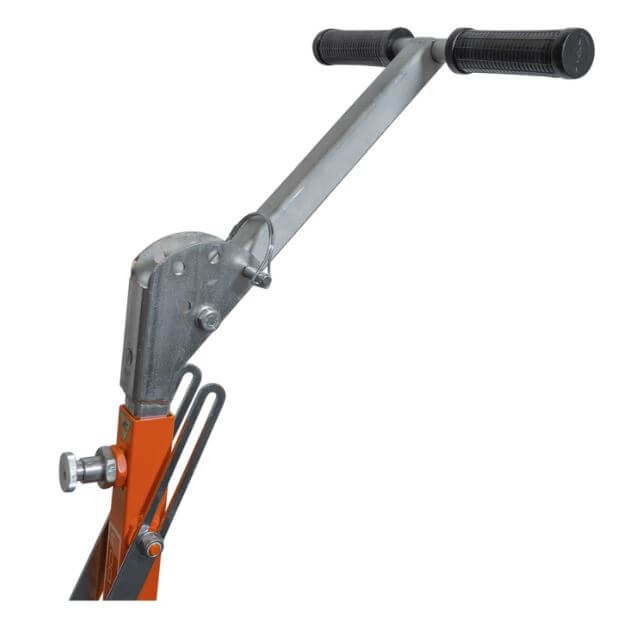

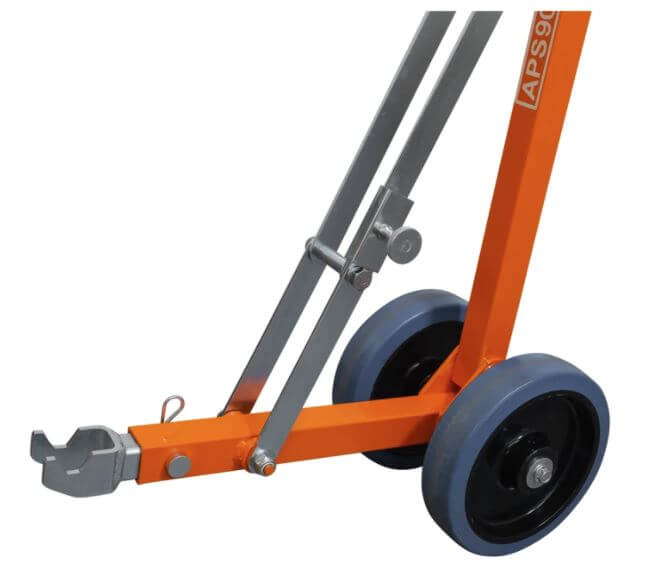

APS90 is a multi-purpose, wheeled, folding lever designed for use in combination with the CL10, CL11, PM500, Mechanical Clamps and BT95 Lifting Bar. The lever guarantees fast, easy and safe operations in lifting, moving and repositioning manhole covers for underground water, sewerage, gas and telecommunications networks. The tool is “operator friendly” as these manoeuvres can be performed safely by pushing down rather than lifting. This means the spine is released and not compressed, eliminating potential back injuries.
Out of stock
The APS90 is a clever accessory that COMPLIES WITH AND ALLOWS THE EMPLOYER TO SATISFY AND REDUCE TO A MINIMUM, THE RISKS INVOLVED IN MANUAL HANDLING AS PRESCRIBED BY: Ergonomics – Application Document for Standards on Manual Handling ISO 11228-1, ISO 1128-2, ISO 11228-3. Thanks to its light weight, robust and compact design, it occupies minimal space onboard vehicles.
Used in combination with:
WEIGHT 10 kg
HEIGHT WITH UPPERARM RETRACTED 1120 mm
LENGTH OF LOWER ARM RETRACTED (from back of wheel) 510 mm
LIFTING FORCE (IN IDEAL CONDITIONS) 600 kg
LENGTH OF UPPER ARM (from back of wheel) 1425 mm
LENGTH OF LOWER ARM EXTENDED (from back of wheel) 700 mm
Universal model with rectangular base ideal for lifting, moving and repositioning the majority of covers and grilles in cast iron and ferrous materials. The handle is telescopic and folding, minimising the space needed.
The exclusive configuration gives versatility of use in four ways to fit the majority of lifting/repositioning operations. The plate, with 16 powerful neodymium magnets assures a lifting force of 300kg with a weight of only 7kg.
