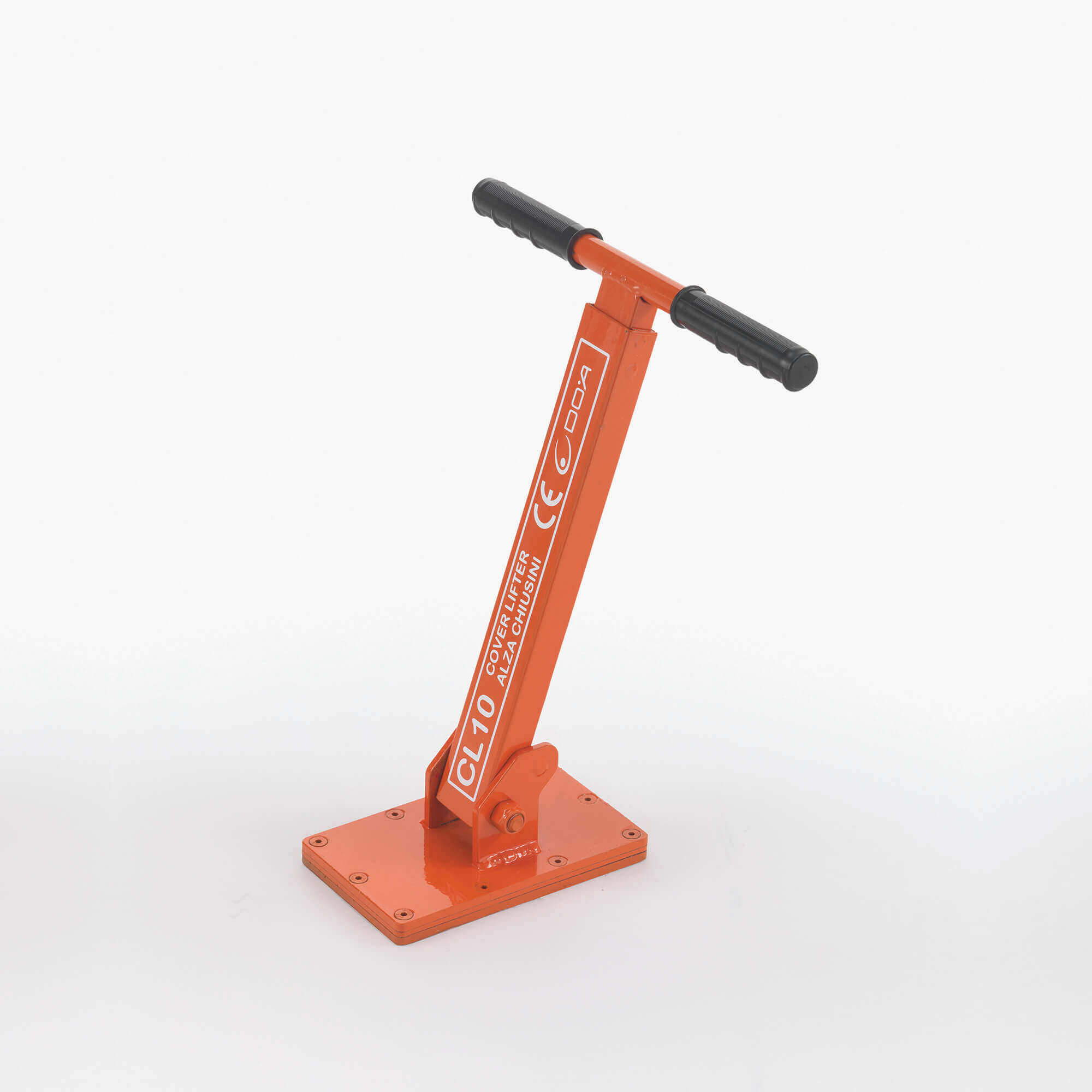

CL10 Magnetic Manhole Cover Lifter
Universal model with rectangular base ideal for lifting, moving and repositioning the majority of covers and grilles in cast iron and ferrous materials. The handle is telescopic and folding, minimising the space needed.
The exclusive configuration gives versatility of use in four ways to fit the majority of lifting/repositioning operations. The plate, with 16 powerful neodymium magnets assures a lifting force of 300kg with a weight of only 7kg.
Product Enquiry
Product Demo
Operation is simple, fast and safe.
| Weight: 7kg |
| Height in Extension: 725mm |
| Base Dimension: 210 x 163mm |
| Height Retracted: 490mm |
MANUAL LIFTING WITH MAGNETIC PLATE
CL10 is placed on the cover in the position nearest to the frame giving a solid and secure magnetic hold. The telescopic handle
allows the operator to manually lift and move the majority of covers. A strong sideways stroke is enough to detach the tool.
LIFTING WITH APS90 – APS80 LEVERS
Lifting using CL10 with the folding levers eliminates effort and potential back injury. The operational weight becomes an
advantage due to the downward pushing action that stretches the vertebrae and back muscles.
LIFTING WITH TWO MAGNETIC PLATES BLOCKED IN PARALLEL AND APS90 – APS80 LEVERS
If a cover is too heavy, blocked by dirt or too grooved with minimal magnetic contact, simply use two CL10 in parallel connected by a small “bridge”. The contact force is doubled and the operational weight becomes an advantage due
to the downward pushing action that stretches the vertebrae and back muscles. The plates can then be detached one at a time.
MANUAL LIFTING WITH HANDLE BLOCKED HORIZONTALLY TO LIFT HINGED ROUND COVERS
By simply changing the position of a pin it is possible to lock the telescopic handle into a horizontal position. In this configuration the magnetic plate becomes a practical, rigid, long handle to lift and reverse covers that are hinged to the frame.
