AirPower S25

AirPower S25

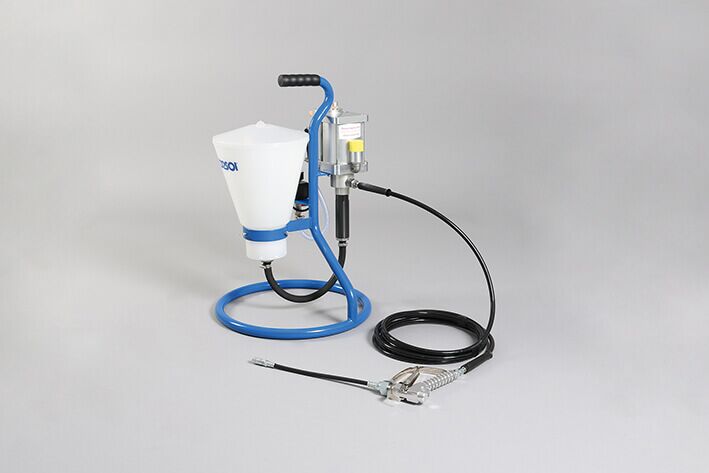

The pneumatic reciprocating pump DESOI AirPower S25 combines high capacity with compact design. Due to the directly mounted seals on the position, tensioning is not necessary. The result is a very maintenance-friendly machine.

Advantages include:

  • Big material passages – highly viscous material can be used
  • A tensioning of the piston sealings is not necessary
  • Easy maintenance and repair

Request a Quote
Call to Enquire
Book a Demo
Categories: , ,

MATERIALS TO BE USED

  • Epoxy resin
  • Polyurethane
  • Quick-foaming Polyurethane
  • Aqueous solution

TECHNICAL DATA

Working pressure – infinitely variable 7-220 bar

Delivery rate 5.1 l/min

Air consumption 1m3/min

Air pressure max. 8 bar

Transmission ratio 1:28

Air consumption and delivery rate at 100 bar back pressure (injection pressure)

Air consumption                            Delivery rate

90 l/min                                          0.5 l/min

183 l/min                                        1 l/min

308 l/min                                        2 l/min

433 l/min                                        3 l/min

Weight: 13.7kg

Dimensions: 45L x 50W x 67H cm
