Kwik ‘N Sure® & Sure-Grip® Pipe Plugs
Kwik ‘N Sure® and Sure-Grip® are mechanical pipe plugs used to seal pipe ends for testing, isolation, maintenance, or cleanout access. They fit common domestic and industrial pipe types, with defined usage ranges and maximum back-pressure ratings to suit different jobs. Speak with our team for help selecting the right plug for your pipe size and pressure.
What are Kwik ‘N Sure® pipe plugs used for?
Kwik ‘N Sure® plugs provide a fast, secure seal for water-line stub-outs and similar applications. The design focuses on reliable sealing under pressure while remaining simple to install and remove, even in tight spaces. These plugs are purpose-built for repeat use on multiple pipe materials.
What are the key features and materials?

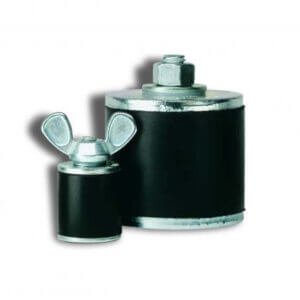

Kwik ‘N Sure®
-
Mechanical plug with a natural-rubber O-ring for a positive seal.
-
Fastener style varies by size: smaller sizes use a wing nut for finger-tight installation; larger sizes use a hex nut for wrench-tightening.
-
Designed to withstand defined maximum back-pressure ratings when installed correctly within the stated usage range.
Sure-Grip®
-
Durable polypropylene construction designed to fit nominal pipe sizes.
-
Suitable for temporary or permanent sealing in residential, commercial or industrial contexts.
-
Can be tapped to create a cleanout cover when ongoing access is required.
-
Uses a natural-rubber O-ring to achieve a secure seal.
What sizes, usage ranges and maximum back-pressure ratings are available?
Both product families come in a range of sizes to match pipe dimensions and pressure needs. Each size lists:
-
Nominal size (or actual fit size)
-
Usage range (minimum to maximum allowable pipe OD for a proper seal)
-
Maximum back-pressure (the highest pressure the plug is rated to resist when installed within the usage range)
-
Length and product weight for handling and clearance planning
Refer to the specification table on this page to filter by nominal size, usage range, and back-pressure rating. If you’re unsure which model fits your pipe, call us and we’ll match the correct SKU to your measurements.
How do I choose the right plug?
Use this simple selection path:
-
Confirm pipe type and size: measure the pipe’s outside diameter or confirm its nominal size.
-
Match the usage range: choose a plug whose usage range fully covers your exact pipe size.
-
Check maximum back-pressure: select a plug with a rating that exceeds your test or operating pressure.
-
Pick fastening style: prefer wing-nut sizes for quick hand installation; choose hex-nut sizes where higher tightening force is required.
-
Decide on permanence: choose Sure-Grip® if you need a permanent plug or the option to tap for a cleanout cover.
Kwik ‘N Sure
| Part Number | Nominal Size | Usage Range | Maximum Back Pressure | Length | Product Weight | |
|---|---|---|---|---|---|---|
| 269832 | 0.39" (10 mm) |
0.38"-0.43" (10-11 mm) |
185 psi (12,8 bar) |
428 ft. (128 M) |
1.87" (48 mm) |
1 oz (0.03 kg) |
| 269840 | 0.5" (13 mm) |
0.5"-0.56" (13-14 mm) |
180 psi (12,4 bar) |
415 ft. (124 M) |
1.87" (48 mm) |
1.5 oz (0.04 kg) |
| 269867 | 0.75" (20 mm) |
0.72"-0.87" (18-22 mm) |
180 psi (12,4 bar) |
415 ft. (124 M) |
2.06" (52 mm) |
1.6 oz (0.05 kg) |
| 269875 | 1" (25 mm) |
0.86"-1.02" (22-26 mm) |
40 psi (2,8 bar) |
92 ft. (28 M) |
2.18" (55 mm) |
1.9 oz (0.05 kg) |
| 269883 | 1.25" (32 mm) |
1.24"-1.43" (32-36 mm) |
112 psi (7,7 bar) |
258 ft. (77 M) |
2.06" (52 mm) |
3 oz (0.07 kg) |
| 269891 | 1.5" (40 mm) |
1.43"-1.53" (36-39 mm) |
88 psi (6,1 bar) |
203 ft. (62 M) |
1.87" (48 mm) |
3.4 oz (0.08 kg) |
| 269905 | 2" (50 mm) |
1.73"-2.06" (44-52 mm) |
112 psi (7,7 bar) |
258 ft. (77 M) |
2.63" (67 mm) |
7 oz (0.2 kg) |
| 269913 | 2.5" (60 mm) |
2.3"-2.78" ((58-71 mm)) |
72 psi (4,9 bar) |
166 ft. (51 M) |
2.75" (70 mm) |
12 oz (0.3 kg) |
| 269921 | 3" (75 mm) |
2.73"-3.2" (69-81 mm) |
28 psi (1,9 bar) |
65 ft. (19 M) |
3.12" (79 mm) |
1.5 lbs (0.68 kg) |
| 269948 | 4" (100 mm) |
3.72"-4.5" (95-114 mm) |
24 psi (1,7 bar) |
55 ft. (17 M) |
3.12" (79 mm) |
2.6 lbs (1.2 kg) |
| 269956 | 5" (125 mm) |
4.8"-5.19" (122-132 mm) |
8 psi (0,6 bar) |
18 ft. (6 M) |
3.25" (82 mm) |
2.25 lbs (1 kg) |
Sure-Grip
| Part Number | Nominal Size | Usage Range | Maximum Back Pressure | Length | Product Weight | |
|---|---|---|---|---|---|---|
| 271158 | 1.5" (40 mm) |
1.48"–1.63" (40–42 mm) |
22 psi (1,5 bar) | 50 ft. (15 M) |
2.5" (64 mm) |
1.6 oz (0.7 kg) |
| 271208 | 2" (50 mm) |
1.89"–2.09" (48–53 mm) |
22 psi (1,5 bar) | 50 ft. (15 M) |
3" (75 mm) |
2.4 oz |
| 271308 | 3" (75 mm) |
2.89"–3.09" (73–79 mm) |
13 psi (0,9 bar) | 30 ft. (9 M) |
3.7" (94 mm) |
4.9 oz |
| 271408 | 4" (100 mm) |
3.87"–4.09" (98–103 mm) |
13 psi (0,9 bar) | 30 ft. (9 M) |
3.5" (87 mm) |
6.8 oz |
