epros® DrainLCR-S: Lateral Connection Repair in Main Sewer Pipes
epros® DrainLCR-S is a trenchless repair system that seals main/lateral interfaces by installing a glass-reinforced hat profile or an LCR-S liner from the main pipe into the lateral up to 600 mm. It supports main DN 135–600 and lateral DN 100–200 at 30°–90° connection angles.
What is epros® DrainLCR-S and who is it for?
DrainLCR-S is both a device and a method for repairing house lateral connections from within the main line in municipal and industrial sewer networks. It permanently seals junctions using either a hat profile (seals at the rim in the main) or an LCR-S liner (repairs the main section and a defined length of the lateral).
How does DrainLCR-S work step-by-step?
DrainLCR-S positioning uses an on-packer camera, a rotary drive and telescopic wheel sets to locate the junction precisely while maintaining alignment. A compressed-air pathfinder lifts the packer basket into the junction to lock position.
DrainLCR-S inversion & curing starts with time-delayed inflation of the packer, then controlled inversion of the lateral hose and liner/hat profile. A clear acoustic signal confirms full inversion; after curing, the packer is deflated and removed.
How does the epros® DrainLCR-S work?
Trelleborg Pipe Seals Duisburg is among the leading specialist companies in innovative
technologies for the upkeep of sewer systems.
The brand name epros®DrainSystems stands for 20 years of experience, continuous research and
further development of technical systems for modern trenchless repair of pipelines in sewer
systems, buildings and industries.

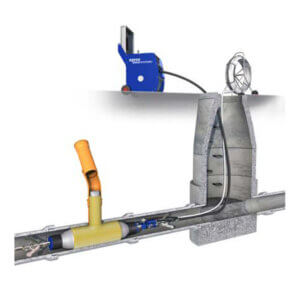

The epros® DrainLCR-S system is both a pipe repair device and a method for the lateral connection repair (house lateral connections) of main pipes in public infrastructure networks.
It repairs and permanently seals main/lateral interfaces and lateral connections (DN 100 – DN 200) by installing either a LCR-S hat profile or an LCR-S liner from the main pipe (DN 135 – DN 600) up to a length of 600 mm.

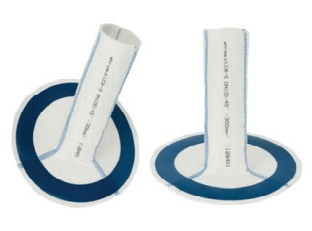

The LCR-S hat profile seals the main/lateral junction in the main line just with its rim. The LCRS liner in the main pipe is designed similar to a short liner and will at the same time repair a defined length of the lateral pipe.
In both cases, the forming element is an inflatable pro-formed hose that serves the same function.
This inflatable hose in the form of a cylinder (packer hose), is additionally equipped with another cylinder located at the mid-point (the lateral hose) at an angle of 45° or 90° to the axis of the packer.
Prior to installation, this lateral hose together with resin-impregnated LCR-S Liner or LCR-S hat profile is re-inverted into the packer hose.
Sucking out the complete air out of the packer hose and the branch hose generates a sort of vacuum, which allows to defend the repair material inside the packer hose (LCR-S Liner or LCR-S hat profile) from possible dislocation during the insertion into the pipe.

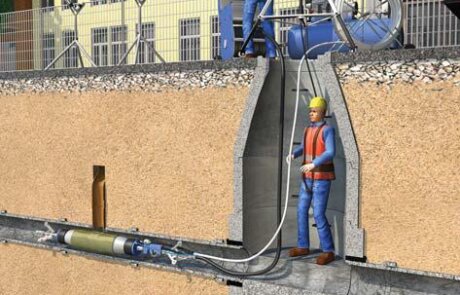

This is usually performed by means of a push rod reel system, and in case of short distances and small pipe diameters – with a pneumatic push-rod attached to the packer.
In case of both applications precise determination of damaged area as well as the correct positioning of the packer are imperative. The following devices are used for these purposes:
First, a camera is mounted on the packer. This camera helps to locate the junction of the house connection pipe to the main pipe.
The packer is equipped with a telescopic wheel system and a rotary drive that enables the user to rotate it axially in the damaged area and so to locate the junction whilst the wheel systems braced inside the pipe maintain the axial position.
The packer rod is featured by a lifting mechanism with a compressed air cylinder (pathfinder) pushing
a sort of ring (the packer basket) into the main/lateral junction area. This packer basket is located underneath the packer hose directly at the packer hose/ branch hose link and its lifting
mechanism is controlled via an operator panel from outside the pipe.
It is the function of the pathfinder to achieve the correct positioning inside the sewer pipe at the damaged lateral connection and to lift up the basket directly into the junction.
The LCR-S Packer, prepared in this way, is then pushed into the damaged area.
When the packer has reached its final position, the inflation process is started with the packer hose and after a given time delay continued with both, the lateral hose and liner, now inverting into the connection pipe whilst the lifting basket is driven back. The time-delayed inflation is controlled by means of a stiff cable, inserted and braked using a reeling box.
Partially inflated packer after positioning After the lateral packer hose has been completely inverted, a clear acoustic signal is given to indicate that the inversion process successfully is finalized.
After curing of the liner, the packer is blown off and removed from the repair area.
Benefits at a glance
- Application area
Mainline DN 130 – DN 600
Lateral DN 100 – DN 200
30° – 90° - Portable modular system:
Light mobile unit, can be transported also in a small vehicle - Value for money:
Low investment costs, because only packer sizes that are really needed must be purchased.
Fast installation allows multiple installations per day - User-friendly handling:
LCR packers can be converted into other sizes, according to your needs. This allows as much flexibility in application as possible.
Our appropriate resin systems are designed to have both comfortable pot times and quick cure times as soon as the chemical reaction has been started. This helps to reduce time pressure, increases work security and leads to better product quality. - Safe installation:
1. Starting the inflation process is possible only after the LCR basket is locked in place.
2. Only a complete finalized inflation process triggers the acoustic signal. - Clean Technology:
Trenchless technology. No voc’s, no styrene, no environmental or health issues - Quality and Sustainability:
No shrinkage. Glass reinforced hat profiles and liners ensure excellent mechanical properties and a good rehabilitation result with a long lifetime.

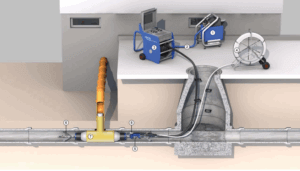

Functional principle
| 1 | Compressor, minimum 300 L / 8 bar / power generator 250 V / 50 Hz / 2,5 A |
| 2 | Compressed air hose 10 m |
| 3 | LCR-S control unit with monitor, incl. 60 m hose package and camera |
| 4 | LCR-S Cobra reel system, 100 m with flex adapter |
| 5 | LCR-S rotary drive |
| 6 | LCR-S wheel set |
| 7 | LCR-S packer |
| 8 | LCR-S camera |
Basic equipment for rehabilitation
| Description | Product illustration (actual appearance may vary) |
|---|---|
|
LCR-S control unit (German) The LCR control unit controls the compressed air and the vacuum for the LCR packer, the pathfinder and the motor. The unit includes a high-quality monitor and a keyboard for data input as well as a video output (keyboard and programming in the German language). LCR-S control unit (English) as above, but the keyboard and programming in the English language. Other languages available on request |
 |
|
LCR-S Hose Reel with rotary feedthrough incl. camera cable and all supply lines Equipment:
with hose package 100 m with hose package 150 m Components are sold separately on request (see Spare Part Catalogue) |
|
|
Optionally (instead of Y manifold): LCR-S connection adapter for direct connection to the LCR-S packer: The adapter is equipped with following connections:
|
 |
Basic equipment for rehabilitation
| Description | Product illustration (actual appearance may vary) |
|---|---|
| Allen Key with T-Handle 8 mm |
|
|
LCR-S Tripod stand set (two tripod stands, height-adjustable and demountable, galvanized) |
|
|
LCR-S Packer – Type 300 (Standard) Lateral connection repair length 280 mm LCR-S Packer – Type 500 or Type 600 Lateral connection repair length 500 / 600 mm Data required for the packer: a) Lateral connection length b) Main pipe diameter (DN 135 – DN 600) c) Lateral connection pipe diameter (DN100 – DN 200) d) Connection angle (45° or 90°) |
|
|
The LCR packer must be equipped with the proper wheel set according to pipe dimensions. Wheel sets can be adjusted to various pipe dimensions. A wheel set is equipped with 2 wheel supports. If two or more LCR packers are used simultaneously, then more wheel sets must be used accordingly. The wheel sets are also necessary when used with a trolley. LCR-S wheel set DN 135 – DN 250 incl. 40, 60, and 80 mm wheels LCR-S wheel set DN 300 – DN 450 incl. 80 and 120 mm wheels LCR-S wheel set replacement unit (from DN 450 to DN 500/DN 600) |
|
Basic equipment for rehabilitation
| Description | Product illustration (actual appearance may vary) |
|---|---|
|
LCR-Rotary Drive for exact long distance positioning, Also mountable on the LCR-Packer. With the Control-Unit the LCR-packer can be turned to the left and the right with a rotation of 360°. |
|
|
LCR-S camera bracket set for camera assembly, incl. assembly plate, camera assembly bracket and screws (DN 200 – 450). Fixing rods 40, 60, 80, 110 and 170 mm as well as extra assembly bracket for small diameters (DN 135 – DN 150) |
|
|
LCR-S camera bracket for the opposite side Necessary for the 45° LCR packer for application in directional flow |
|
|
Whistle set ref. Art. No. 000047400 (camera bracket for the opposite side) |
|
| Eye bolt for cable leading (optionally) |
|
| Punching tool |
|
Basic equipment for rehabilitation
| Description | Product illustration (actual appearance may vary) |
|---|---|
|
LCR – Flexible fibre glass push rod (L 100 m / ø 11 mm ) on reel system (ø 0.90 m) equipped with a flexible plug for the packer connection |
|
|
Alternatively – instead of LCR-S reel system LCR-Air push-rods (red) with safety coupling and locking device 0.7 m 1.5 m 3.0 m |
|
| LCR-Flex Adapter with Locking Device for LCR-Air Push Rods (red) and LCR-Fibre Glass Push Rod |
|
|
Compressed air hose 10 m with SVS coupling |
|
|
LCR-S rubber bands, e.g. for fixing the hat profile, 100 pcs. in bag |
|
|
Special binding wire Ø 0.65 mm on spindle |
|
Tool boxes for repairs and Packer conversion
| 4.1 | LCR basic toolbox | |
|---|---|---|
|
LCR Basic Tool Box compl. Basic equipment for rehabilitation with epros®LCR-S or epros®LCR-B system used in connection with a particular supplementary kit Plastic box (Systainer type IV) Dimensions approx. 600 x 400 x 240 mm |
|
|
| 4.1.1 | LCR-S supplementary kit for the LCR basic toolbox | |
|
This kit contains LCR-S specific small spare parts, e.g. couplings, screws, seals, air hoses and a combination wrench set. |
For details and article numbers pl. refer to system catalogue |
|
| 4.2 | Integration box for LCR packer conversion | |
|---|---|---|
|
LCR Basic Integration Box compl. (Basic equipment for packer conversion from epros®LCR-S and epros®LCR-B system used in connection with respective supplementary kit) Plastic box (Systainer type IV) Dimensions approx. 600 x 400 x 240 mm |
|
|
| 4.2.1 | LCR-S supplementary kit for LCR integration box | |
|
Spare parts especially for the LCR-S Packer conversion requirements |
For details and article numbers pl. refer to system catalogue |
|
Packer – conversion articles
| Art. No.: | Description | Product illustration (actual appearance may vary) |
|---|---|---|
| 154200 |
LCR repair set for calibration hose (in plastic systainer): • Super glue (tube) • All-purpose cleaner (bottle) • LCR silicone patches (190 x 280 mm) • Silicone glue (Tube with roll-up enhancing agent and spray tip) • Cleaning rag (380 x 380 mm) |
|
| For Article numbers pl. refer to (price) catalogue |
LCR-S “DrainCali 300” (calibration hose) Lateral connection length 280 mm (Standard) DN 135/100 … 600/200 mm; 45° or 90° LCR-S calibration hose “DrainCali 500” LCR-S calibration hose “DrainCali 600” (Packer retrofitting necessary) |
|
| For Article numbers pl. refer to (price) catalogue |
LCR-S packer baskets Necessary information: a) Main pipe diameter (DN 135 – DN 600) b) Secondary pipe diameter (DN 100 – DN 200) c) Connection angle (45° or 90°) |
|
|
146401 146402 146403 146404 146405 146406 146407 |
LCR-S lifting rods DN 135 DN 150 DN 200/225 DN 250 DN 300 / 350 DN 400/450 DN 500 / 550 / 600 DN dimensions refer to the main pipe diameter |
|
Appropriate Resin Systems for the LCR-S method
epros® Resin Systems (ambient cure)
|
Silicate Resin Systems Comp. A (Hardener) + B (Resin) Mixing ratio 1:2 (Litre) epros®SilicateResin Type W1 Pot life 15 min. (20 °C) | Cure time 115 min. (15 °C) epros®SilicateResin Type S1 Pot life 32 min (20 °C) | Cure time 260 min (15 °C) |
| Art. No.: | Description | Product illustration (actual appearance may vary) |
|---|---|---|
|
116901 116903 116700 |
Can Sizes: epros®SilicateResin type W1 epros®SilicateResin type S1 26 kg (= Comp. B) epros®Hardener 16 kg (= Comp. A) |
|
|
116801 116803 116600 |
Drum Sizes: epros®SilicateResin type W1 epros®SilicateResin type S1 250 kg (= Comp. B) epros®Hardener 300 kg (= Comp. A) |
|
|
|
Epoxy Resin Systems Comp. A (Resin) + B (Hardener) Mixing ratio 100:33 (Litre) EPROPOX FC15 Pot life 15 min. (25 °C) | Cure time 120 min. (20 °C) EPROPOX FC30 Pot life 30 min (25 °C) | Cure time 240 min (20 °C) 1. For more technical details pl. refer to Technical Data Sheet 2. For Package sizes and Art. Numbers or prices pl. refer to price catalogue |
epros® Epoxy Resin Systems (Hot cure)
|
|
EPROPOX HC60 Pot life 60 min. (25 °C) Cure time 60 min. (60 °C hot water) EPROPOX HC120 Pot life 120 min. (25 °C) Cure time 90 min. (60 °C hot water) EPROPOX HC2640 Pot life 2640 min = 44 hrs. (25 °C) Cure time 300 min = 5 hrs (80 °C hot water) 1. For more technical details pl. refer to Technical Data Sheet 2. For Package sizes and Art. Numbers or prices pl. refer to price catalogue |
|
LCR self-sealing hat profiles and LCR- liner
| Art. No.: | Description |
Product illustration (actual appearance may vary) |
|
pl. refer to (price) catalogue |
LCR-S hat profile 300* LCR-S hat profile 500* LCR-S hat profile 600* The material of the hat profile consists of a mixture of glass fibre (85%) and plastic fibre (15%). LCR-hat profiles are covered with PVC foil, the brim is reinforced. DN 100, 125, 150, 200, 225, 250 45° or 90° Wall thickness 3 – 5 mm according to version *) Lateral length 280 mm (type 300) For types 500 or type 600 (lateral length 500 resp. 600 mm) packer retrofitting is necessary |
|
|
Save storage space and money. For Article numbers pl. refer to (price) catalogue |

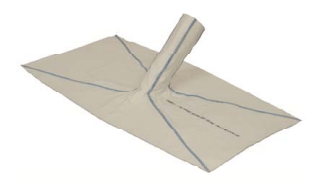

LCR-Liner - multidimensional! Only 3 sizes for main sewer diameter (DN 100/200 – DN 100/300 – DN 350/600) Lateral connection DN 50 – DN 250 / 45° or 90° High quality material as described above. |
|
|
Why not to use your existing LCR control unit for
high-quality impregnation of LCR-liner and LCR hat profiles? Please use the vacuum function of the LCR control unit for this purpose! We supply prepared LCR hat profiles and liners, packed in vacuum bag for quick, bubble-free and high-quality impregnation. |
|
Further Information available :
DIBt Approval No. Z-42.3-375 epros®DrainLiner Method DN 100 – DN 400 with epoxy resin system EPROPOX HC60
Including the LCR-S Method with epoxy resin system EPROPOX HC60 and Silicate Resin Systems S1, W1, W01
Valid until 30. April 2015
DIBt Approval No. Z-42.3-466 epros®DrainLiner Method DN 100 – DN 250 with epoxy resin systems EPROPOX FC15 / FC30
Including the LCR-S Method with epoxy resin systems EPROPOX FC15 / FC30 and Silicate Resin System S1, W1, W01
Valid until 30. April 2016
DIBt Approval No. Z-42.3-468 epros®DrainLiner Method DN 100 – DN 600 mit with epoxy resin system EPROPOX HC120
Including the LCR-S Method with epoxy resin systems EPROPOX FC15 / FC30 and Silicate Resin System S1, W1, W01
Valid until 31. May 2016
DIBt Approval No. Z-42.3-483 epros®DrainLiner Method DN 100 – DN 1000 mit with epoxy resin system EPROPOX HC2640
Including the LCR-S Method with epoxy resin systems EPROPOX FC15 / FC30 with epoxy resin system EPROPOX HC60 and Silicate Resin System S1, W1, W01
Valid until 31. May 2017
