I-Series Test-Ball® plugs are designed for line acceptance testing and temporary pipe blocking. Each plug supports 15 psi (1 bar) maximum back pressure and inflates to 45 psi (3 bar). The series is built with mechanical bonding between premium natural rubber and end plates for durability. Larger diameters across the I-Series also incorporate an engineered pressure relief valve to improve safety.

Models (paste as bullets):

• CHE310088 — Nominal 100–200 mm: usage range 100.33–209.55 mm, 15 psi max back pressure, 45 psi inflation, 1.75 kg weight, 585 mm length.

• CHE310128 — Nominal 150–300 mm: usage range 139.7–311.15 mm, 15 psi max back pressure, 45 psi inflation, 3.25 kg, 635 mm length.

• CHE310168 — Nominal 200–400 mm: usage range 190.5–412.75 mm, 15 psi max back pressure, 45 psi inflation, 5.2 kg, 710 mm length.

• CHE210188 — Nominal 300–450 mm: usage range 273.05–476.25 mm, 15 psi max back pressure, 45 psi inflation, 9.5 kg, 635 mm length.

• CHE310248 — Nominal 300–600 mm: usage range 279.4–615.95 mm, 15 psi max back pressure, 45 psi inflation, 12.2 kg, 940 mm length.

Back-pressure note: back-pressure capability varies by pipe diameter; use the chart on the page to confirm PSI at your diameter (e.g., 300–600 mm plug supports 27/25/22/19/15 psi at 300/400/450/530/600 mm).

I-Series Air-Loc® plugs are sized for air testing of sewer lines, combining short overall length with flexible construction. Each plug supports 15 psi (1 bar) max back pressure and inflates to 45 psi (3 bar).

Models:

• CHE317128 — Nominal 150–300 mm: usage range 139.7–311.15 mm, 15 psi max back pressure, 45 psi inflation, 3.6 kg, 635 mm length.

• CHE217128 — Nominal 200–300 mm: usage range 177.8–311.15 mm, 15 psi max back pressure, 45 psi inflation, 4.7 kg, 470 mm length.

• CHE217188 — Nominal 300–450 mm: usage range 273.05–476.25 mm, 15 psi max back pressure, 45 psi inflation, 10.4 kg, 635 mm length.

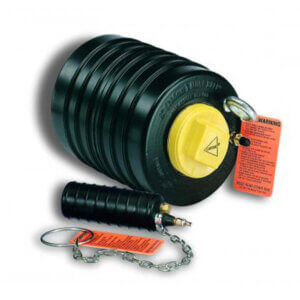

I-Series Muni-Ball® plugs provide blocking with bypass for testing and maintenance. Every model supports 15 psi (1 bar) max back pressure and inflates to 45 psi (3 bar), with an integral bypass port that varies by size.

Models (include bypass size in copy):

• CHE311088 — Nominal 100–200 mm: ¾″ NPT bypass; usage range 100.33–209.55 mm; 15 psi max back pressure; 45 psi inflation; 2.1 kg; 585 mm length.

• CHE311128 — Nominal 150–300 mm: 1″ NPT bypass; usage range 139.7–317.5 mm; 15 psi max back pressure; 45 psi inflation; 4.3 kg; 635 mm length.

• CHE212128 — Nominal 200–300 mm: 2″ NPT bypass; usage range 139.7–317.5 mm; 15 psi max back pressure; 45 psi inflation; 5.5 kg; 470 mm length.

• CHE312168 — Nominal 200–400 mm: 2″ NPT bypass; usage range 190.5–412.75 mm; 15 psi max back pressure; 45 psi inflation; 7.2 kg; 710 mm length.

• CHE214188 — Nominal 300–450 mm: 3″ BSP bypass; usage range 273.05–476.25 mm; 15 psi max back pressure; 45 psi inflation; 12.7 kg; 635 mm length.

• CHE312248 — Nominal 300–600 mm: 3″ BSP bypass; usage range 279.4–615.95 mm; 15 psi max back pressure; 45 psi inflation; 15.9 kg; 940 mm length.

Safety note for larger sizes (applies across I-Series): models 300–450 mm and larger include an engineered pressure relief valve to protect the plug during inflation.

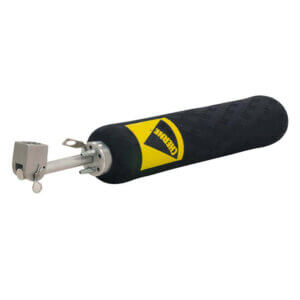

Remo® plugs support remote placement and retrieval using a pole system, ideal when access is limited. Each model supports 15 psi (1 bar) max back pressure and inflates to 45 psi (3 bar).

Models:

• CHE319128 — Nominal 150–300 mm: usage range 139.7–311.15 mm, 15 psi max back pressure, 45 psi inflation, 3.8 kg, 635 mm length.

• CHE219128 — Nominal 200–300 mm: usage range 177.8–311.15 mm, 15 psi max back pressure, 45 psi inflation, 4.9 kg, 470 mm length.

• CHE219188 — Nominal 300–450 mm: usage range 273.05–476.25 mm, 15 psi max back pressure, 45 psi inflation, 11.0 kg, 635 mm length.
